The RainDance "Iron Max-125" High Flow Iron and Manganese Filtration Systems

High flow iron filters for whole house, irrigation, and light commercial applications.


Pre-programmed valve

The High Flow Iron Max series uses revolutionary hybrid media provides high performance iron, manganese and hydrogen sulfide gas removal, and the unique media structure allows for suspended solids filtration to be approximately 3-5 microns nominal, while providing low pressure loss, high service flow rates, and extended contaminant capacity. RainDance Engineered to stop iron, rust, and manganese staining as well as protect fixtures & irrigation systems from the excessive sediment and fine particles.

irrigation water filter cartridgeThinking about an iron filter cartridge? Think again! Cartridge-type filters can clog and foul quickly with excessive iron, manganese, sediment, and other debris from your well, causing pressure loss, low flow and resulting in costly replacements and labor-intensive maintenance. Automatic backwashing filtration systems like the Iron Max are a cost-effective, long-term solution for high iron staining and fouling without weekly, monthly, or yearly expenditures or replacement maintenance.

Compare the RainDance Iron Max:

  • Removes high iron, rust, manganese, hydrogen sulfide gas odors, & sediment
  • *Guaranteed Results & Great Warranty
  • NSF Certified Components
  • Specified Iron Max Systems are delivered pre-loaded with filter media & pre-programmed for your individual water chemistry!
  • Chemical Free & Maintenance Free
  • Exclusive RainDance Iron Max Dealer Kit now available to our everyday customers - free! (what's this?)



  • The High Flow Iron Max Chemical Free Iron, Manganese, Sulfur Odor & Sediment Filters

    Iron Max Catalog

    Is The RainDance High Flow Iron Max The Best Iron & Manganese Filter For You?

    If you're tired of using chemicals, orange/reddish iron staining, black/brownish manganese staining, sediment, bitter metallic tasting water, sulfur odor rotten egg smell, and dirty irrigation water, the Iron Max system is for you!



    Scroll Down for Prices or Request Information

    RainDance Water Systems Iron Max Quote

    Name:
    Company Name:
    Email Address:
    Describe Your Application:

    Iron Max-125-10 High Demand Households / Irrigation Iron Filter



    IN STOCK: YES - System ships preloaded w/ media & valve preprogrammed for your water!

    Iron Max-125-10 w/ Dealer Kit
    Price: $1,495.00

    Did you get your Iron Max Rebate?




    Model # Iron Max-125-10
    System Function Well Water Iron, Manganese, Hydrogen Sulfide Gas Odor, Sediment
    Filtered Water Treatment System
    Dimensions 10" dia. x 63" ht.
    Maximum Flow Rate Service: 12gpm / Peak: 15gpm
    Backwash Flow Rate 10 gpm
    Maximum Removal Capacities 10ppm Ferrous & Ferric Iron
    5ppm Manganese
    3ppm Hydrogen Sulfide Gas
    3-5 Micron Sediment, Sand Turbidity
    Minimum/Maximum Pressure 30/100 psi
    pH Level Needed 6.8 or greater
    *If your pH is below 6.8 visit our Iron Max Store for pH boosters at special packaged pricing.
    System Weight 145 lbs
    Plumbing Size 1" or 1.25"
    Please Specify When Ordering
    Bypass Valve Yes, Included
    Protective Tank Jacket Yes, Included
    RainDance Dealer Kit Yes, Included
    Tech Support Yes, Included

    Good To Know:
    Warranty Information: Lifetime Warranty on Media Tank - 5 Year Warranty on Digital Valve - Filtration Performance Guarantee
    Assembly Information: Iron Max-125-10 ships with tank and media pre-assembled - simply screw control valve on tank when you're ready to install!
    Customer Service: Unmatched lifetime before & after sales support 7 days a week, 365 days a year with knowledgeable, patient representatives!

    RainDance Iron Max Dealer Kit


    We're bringing back our coveted RainDance Dealer Kits for our everyday iron & manganese filter customers to enjoy the same luxuries our dealers use out in the field. Every specialized dealer kit contains select items to go along with your new Iron Max system to make the installation process a little bit easier.

    Iron Max Dealer Kit Accessories Include:
    At Home Water Testing - Have peace of mind and ensure your new Iron Max does the job with an On-The-Spot Water Analysis Kit! Test your water before and after your new filter and see the results for yourself. Easy to Use - Immediate Results - EPA Standards - Test for 10 water quality issues including Iron, Iron Bacteria, Hydrogen Sulfide, pH and 6 other quality tests.

    (2) *Stainless Steel Easy Installation Connectors - No flow restriction NSF 61 tested and certified flex connectors available in 1" pipe size only. *Not required for installation.

      Pipe Freeze Protection - Winter is coming! If you live in an area where pipes are prone to freezing, this item is a must have! EasyHeat Electric Freeze Cable is an easy DIY solution to prevent the pipes leading to your new Iron Max filter from freezing. Includes 9ft Electric Cable - Standard 120V Power - Works for Metal or Plastic Piping. *May not be suitable for every application. Ask us if it's right for you!
      Iron Max Tubing Package - Includes *20ft Polyethylene Drain Line Tubing -  *Mister Drain Air Gap (prevents back flow in standpipe drain sources). *May not be suitable for every application. Ask us if it's right for you!
      Pre-loaded Flash Drive - Includes Detailed Installation Instructions, Control Valve Service Manual w/ Diagrams, Easy Step-by-Step Pictured Programming Instructions Customized for Your Water

    Note: Additional plumbing materials such as pipe and fittings are not included. These materials are readily available at any hardware or home improvement retail store.


    Iron Max-125-12 High Demand Households / Irrigation Iron Filter



    IN STOCK: YES - System ships preloaded w/ media & valve preprogrammed for your water!

    Iron Max-125-12 w/ Dealer Kit
    Price: $1,595.00

    Did you get your Iron Max Rebate?




    Model # Iron Max-125-12
    System Function Well Water Iron, Manganese, Hydrogen Sulfide Gas Odor, Sediment
    Filtered Water Treatment System
    Dimensions 12" dia. x 62" ht.
    Maximum Flow Rate Service: 15gpm / Peak: 18gpm
    Backwash Flow Rate 12 gpm
    Maximum Removal Capacities 10ppm Ferrous & Ferric Iron
    5ppm Manganese
    3ppm Hydrogen Sulfide Gas
    3-5 Micron Sediment, Sand Turbidity
    Minimum/Maximum Pressure 30/100 psi
    pH Level Needed 6.8 or greater
    *If your pH is below 6.8 visit our Iron Max Store for pH boosters at special packaged pricing.
    System Weight 195 lbs
    Plumbing Size 1" or 1.25"
    Please Specify When Ordering
    Bypass Valve Yes, Included
    Protective Tank Jacket Yes, Included
    RainDance Dealer Kit Yes, Included
    Tech Support Yes, Included

    Good To Know:
    Warranty Information: Lifetime Warranty on Media Tank - 5 Year Warranty on Digital Valve - Filtration Performance Guarantee
    Assembly Information: Iron Max-125-12 ships with tank and media pre-assembled - simply screw control valve on tank when you're ready to install!
    Customer Service: Unmatched lifetime before & after sales support 7 days a week, 365 days a year with knowledgeable, patient representatives!

    Iron Max Dealer Kit Accessories Include:
    At Home Water Testing - Have peace of mind and ensure your new Iron Max does the job with an On-The-Spot Water Analysis Kit! Test your water before and after your new filter and see the results for yourself. Easy to Use - Immediate Results - EPA Standards - Test for 10 water quality issues including Iron, Iron Bacteria, Hydrogen Sulfide, pH and 6 other quality tests.

    (2) *Stainless Steel Easy Installation Connectors - No flow restriction NSF 61 tested and certified flex connectors available in 1" pipe size only. *Not required for installation.

      Pipe Freeze Protection - Winter is coming! If you live in an area where pipes are prone to freezing, this item is a must have! EasyHeat Electric Freeze Cable is an easy DIY solution to prevent the pipes leading to your new Iron Max filter from freezing. Includes 9ft Electric Cable - Standard 120V Power - Works for Metal or Plastic Piping. *May not be suitable for every application. Ask us if it's right for you!
      Iron Max Tubing Package - Includes *20ft Polyethylene Drain Line Tubing -  *Mister Drain Air Gap (prevents back flow in standpipe drain sources). *May not be suitable for every application. Ask us if it's right for you!
      Pre-loaded Flash Drive - Includes Detailed Installation Instructions, Control Valve Service Manual w/ Diagrams, Easy Step-by-Step Pictured Programming Instructions Customized for Your Water

    Note: Additional plumbing materials such as pipe and fittings are not included. These materials are readily available at any hardware or home improvement retail store.



    Iron Max-FX-125-12 High Demand Households / Irrigation Iron Filter & Hard Water Conditioner
    *Will the Iron Max-FX Series soften water?
    No, The Iron Max-FX Series will filter iron, manganese, sediment, hydrogen sulfide gas and suspended solids, as well as reduce the effects of hard water scale with a built-in no salt module. To "soften water" you actually have to remove the calcium and magnesium hard water minerals with salt-based ion exchange systems. The Iron Max-FX Series does not remove the calcium or magnesium. These systems are alternatives to salt based water softeners and perfect for customers who live in banned water softener areas, want to irrigate without adding salt, or just want to Go Green!
    Diamond Plate Iron Max-FX


    IN STOCK: YES -
    System ships preloaded w/ media & valve preprogrammed for your water!

    Iron Max-FX-125-12 w/ Dealer Kit
    Price: $1,890.00

    Did you get your Iron Max Rebate?



    Model # Iron Max-FX-125-12
    System Function Salt-Free Hard Water Conditioner, Iron, Manganese, Hydrogen Sulfide Gas Odor, Sediment
    Well Water Treatment System
    Dimensions 12" dia. x 62" ht.
    Maximum Flow Rate Service: 15 gpm / Peak: 18 gpm
    Backwash Flow Rate 12 gpm
    Operating Parameters 25gpg (427ppm) Hard Water
    30ppm Ferrous & Ferric Iron
    5ppm Manganese
    3ppm Hydrogen Sulfide Gas
    3-5 Micron Sediment, Sand Turbidity
    Minimum/Maximum Pressure 30/100 psi
    pH Level Needed 6.8 or greater
    *If your pH is below 6.8 visit our Iron Max Store for pH boosters at special packaged pricing.
    System Weight 145 lbs
    Plumbing Size 1" or 1.25"
    Bypass Valve Yes, Included
    Protective Tank Jacket Yes, Included
    RainDance Dealer Kit Yes, Included
    Tech Support Yes, Included

    Good To Know:
    Warranty Information: Lifetime Warranty on Media Tank - 5 Year Warranty on Digital Valve - Filtration Performance Guarantee
    Assembly Information: Iron Max-FX-125-12 ships with tank and media pre-assembled - simply screw control valve on tank when you're ready to install!
    Customer Service: Unmatched lifetime before & after sales support 7 days a week, 365 days a year with knowledgeable, patient representatives!

    Iron Max Dealer Kit Accessories Include:
    At Home Water Testing - Have peace of mind and ensure your new Iron Max does the job with an On-The-Spot Water Analysis Kit! Test your water before and after your new filter and see the results for yourself. Easy to Use - Immediate Results - EPA Standards - Test for 10 water quality issues including Iron, Iron Bacteria, Hydrogen Sulfide, pH and 6 other quality tests.

    (2) *Stainless Steel Easy Installation Connectors - No flow restriction NSF 61 tested and certified flex connectors available in 1" pipe size only. *Not required for installation.

      Iron Max Tubing Package - Includes *20ft Polyethylene Drain Line Tubing -  *Mister Drain Air Gap (prevents back flow in standpipe drain sources). *May not be suitable for every application. Ask us if it's right for you!
      Pre-loaded Flash Drive - Includes Detailed Installation Instructions, Control Valve Service Manual w/ Diagrams, Easy Step-by-Step Pictured Programming Instructions Customized for Your Water

    Note: Additional plumbing materials such as pipe and fittings are not included. These materials are readily available at any hardware or home improvement retail store.




    Iron Max-125-14 Whole House / Irrigation / Commercial Iron Filter
    Commercial Iron Max


    IN STOCK: YES - System ships preloaded w/ media & valve preprogrammed for your water!

    Iron Max-125-14 w/ Dealer Kit
    Price: $2,465.00

    Did you get your Iron Max Rebate?




    Model # Iron Max-125-14
    System Function Well Water Iron, Manganese, Hydrogen Sulfide Gas Odor, Sediment
    Filtered Water Treatment System
    Dimensions 14" dia. x 73" ht.
    Maximum Flow Rate Service: 20gpm / Peak: 25gpm
    Backwash Flow Rate 20 gpm
    Maximum Removal Capacities 10ppm Ferrous & Ferric Iron
    5ppm Manganese
    3ppm Hydrogen Sulfide Gas
    3-5 Micron Sediment, Sand Turbidity
    Minimum/Maximum Pressure 30/100 psi
    pH Level Needed 6.8 or greater
    *If your pH is below 6.8 visit our Iron Max Store for pH boosters at special packaged pricing.
    System Weight 295 lbs
    Plumbing Size 1" or 1.25"
    Please Specify When Ordering
    Bypass Valve Yes, Included
    RainDance Dealer Kit Yes, Included
    Tech Support Yes, Included

    Good To Know:
    Warranty Information: Lifetime Warranty on Media Tanks - 5 Year Warranty on Digital Valve - Filtration Performance Guarantee
    Assembly Information: Due to weight and ease of maneuverability, tank, valve, and media are shipped separately on single pallet. Each system includes easy step-by-step filling instructions.
    Customer Service: Unmatched lifetime before & after sales support 7 days a week, 365 days a year with knowledgeable, patient representatives!

    Iron Max Dealer Kit Accessories Include:
    At Home Water Testing - Have peace of mind and ensure your new Iron Max does the job with an On-The-Spot Water Analysis Kit! Test your water before and after your new filter and see the results for yourself. Easy to Use - Immediate Results - EPA Standards - Test for 10 water quality issues including Iron, Iron Bacteria, Hydrogen Sulfide, pH and 6 other quality tests.

    (2) *Stainless Steel Easy Installation Connectors - No flow restriction NSF 61 tested and certified flex connectors available in 1" pipe size only. *Not required for installation.

      Iron Max Tubing Package - Includes *20ft Polyethylene Drain Line Tubing -  *Mister Drain Air Gap (prevents back flow in standpipe drain sources). *May not be suitable for every application. Ask us if it's right for you!
      Pre-loaded Flash Drive - Includes Detailed Installation Instructions, Control Valve Service Manual w/ Diagrams, Easy Step-by-Step Pictured Programming Instructions Customized for Your Water

    Note: Additional plumbing materials such as pipe and fittings are not included. These materials are readily available at any hardware or home improvement retail store.

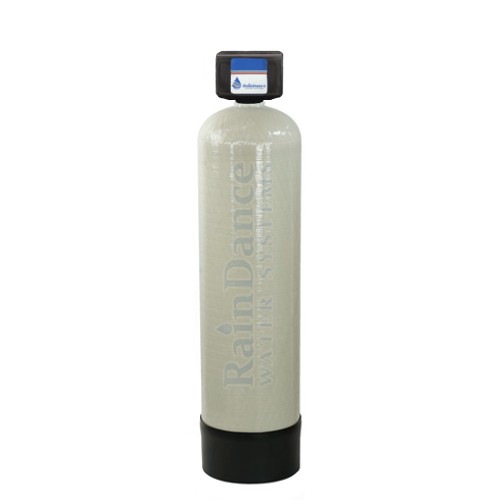

    Iron Max-125-16 Whole House / Irrigation / Commercial Iron Filter
    Commercial Iron Max


    IN STOCK: YES - System ships preloaded w/ media & valve preprogrammed for your water!

    Iron Max-125-16 w/ Dealer Kit
    Price: $2,865.00

    Did you get your Iron Max Rebate?




    Model # Iron Max-125-16
    System Function Well Water Iron, Manganese, Hydrogen Sulfide Gas Odor, Sediment
    Filtered Water Treatment System
    Dimensions 16" dia. x 73" ht.
    Maximum Flow Rate Service: 25gpm / Peak: 30gpm
    Backwash Flow Rate 25 gpm
    Maximum Removal Capacities 10ppm Ferrous & Ferric Iron
    5ppm Manganese
    3ppm Hydrogen Sulfide Gas
    3-5 Micron Sediment, Sand Turbidity
    Minimum/Maximum Pressure 30/100 psi
    pH Level Needed 6.8 or greater
    *If your pH is below 6.8 visit our Iron Max Store for pH boosters at special packaged pricing.
    System Weight 395 lbs
    Plumbing Size 1" or 1.25"
    Please Specify When Ordering
    Bypass Valve Yes, Included
    RainDance Dealer Kit Yes, Included
    Tech Support Yes, Included

    Good To Know:
    Warranty Information: Lifetime Warranty on Media Tanks - 5 Year Warranty on Digital Valve - Filtration Performance Guarantee
    Assembly Information: Due to weight and ease of maneuverability, tank, valve, and media are shipped separately on single pallet. Each system includes easy step-by-step filling instructions.
    Customer Service: Unmatched lifetime before & after sales support 7 days a week, 365 days a year with knowledgeable, patient representatives!

    Iron Max Dealer Kit Accessories Include:
    At Home Water Testing - Have peace of mind and ensure your new Iron Max does the job with an On-The-Spot Water Analysis Kit! Test your water before and after your new filter and see the results for yourself. Easy to Use - Immediate Results - EPA Standards - Test for 10 water quality issues including Iron, Iron Bacteria, Hydrogen Sulfide, pH and 6 other quality tests.

    (2) *Stainless Steel Easy Installation Connectors - No flow restriction NSF 61 tested and certified flex connectors available in 1" pipe size only. *Not required for installation.

      Iron Max Tubing Package - Includes *20ft Polyethylene Drain Line Tubing -  *Mister Drain Air Gap (prevents back flow in standpipe drain sources). *May not be suitable for every application. Ask us if it's right for you!
      Pre-loaded Flash Drive - Includes Detailed Installation Instructions, Control Valve Service Manual w/ Diagrams, Easy Step-by-Step Pictured Programming Instructions Customized for Your Water

    Note: Additional plumbing materials such as pipe and fittings are not included. These materials are readily available at any hardware or home improvement retail store.

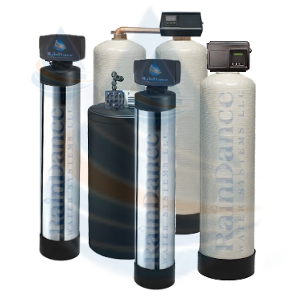

    • Iron Max - Whole House / Irrigation Iron Filters - 3/4", 1" Plumbing Ports Available

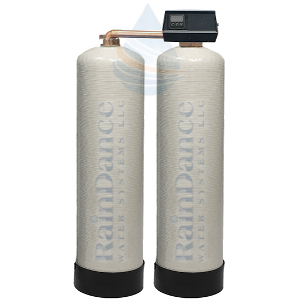

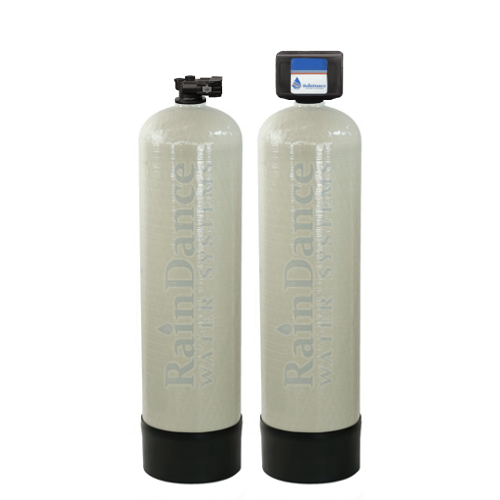

    • Twin Iron Max - Twin Alternating Continuous Filtration - 1", 1.25", 1.5" Plumbing Ports Available
    • Iron Max-125 - High Flow Residential / Light Commercial Systems - 1", 1.25", 1.5" Plumbing Ports Available
    • Iron Max-FX Series - Offers the same iron, manganese, and hydrogen sulfide gas well water treatment as our standard Iron Max with a built-in salt-free hard water conditioning module.
    • Deluxe Iron Max-UV Series: Offers the same well water filtration advantages as our standard Iron Max systems with added NSF Certified state of the art self cleaning Hallett 15xs UV Water System.

    Compare The Benefits & Advantages Of The RainDance Iron Max Iron Filter:


    Long lasting well water filtration media up to 10* years!

    No routine costly filter cartridges to replace!

    Multiple water problems treated in a single space-saving tank!

    Designed for Whole House, Irrigation, and Light Commercial Water Treatment!

    NSF Certified Components & Filtration Media!

    Filter Tank & Control Valve made in the USA & assembled in the USA!

    Chemical Free - Maintenance Free - User Friendly!

    Easy installation for the Do-It-Yourselfer, Plumber, or Contractor - Only 3 Connections!

    Self Cleaning - Automatic Backwashing - Drain Water can even be reused!

    Specified Iron Max filters are delivered preloaded with media, saving time, money, and headache!

    Prevents iron staining on bathroom and kitchen fixtures, washing machines, and dishwashers!

    Clothes & dishware are cleaner!

    Provides clean, crystal clear, odor-free water at every tap, sink, and shower!

    Protects and extends the life of hot water heaters & geothermal heaters!

    Better quality drinking water with no iron metallic tastes!

    Better quality water for grooming & protects natural and dyed hair from excessive iron!
