TSM-1500 Whole House Reverse Osmosis Purification Package

Our largest compact complete reverse osmosis system & whole house equipment set-up.



 15 years and counting our best selling consumer friendly Total Home RO 1500gpd Packages are highly desired for brackish salty well water or city treated water to reduce the levels of total dissolved solids and suspended matter. The principal uses of our whole house reverse osmosis systems are for the treatment of impurities such as chromium-6, nitrate, sulfate, sodium, chlorides, arsenic, copper, lead, fluoride, aluminum, metals, and salty total dissolved solids up to 2500ppm.

Compare our ultra user-friendly Compact Whole House RO Package to any similar whole house purification package on the market today! You'll find that no system can stand up to our TSM-1500 Whole House RO Package, and on top of our superior purification package our customer service and technical support is unmatched. Find out what makes this package unbeatable below.

Sizing your Whole House RO System: Keep in mind that an RO system produces a certain amount of purified water within a 24 hour period, so it's important not to undersize the system. You should size your whole house RO by cutting it's rated gallon per day capacity in half for household production. For example, our TSM-1500 Whole House RO system can produce 1,500 gallons within 24 hours, or approximately 750 gallons every 12 hours, so this system should be considered when no more than 750 gallons is used in home per day.

NEW! Best-In-Class Easy Automatic RO Control Panel now included with the TSM-1500 Whole House RO Package. Our integrated electronic controller offers automated control of several system functions and helps prolong the life of the RO motor and membrane, providing long-term and reliable operation. Built with superior engineering, this control panel eliminates confusing switches and lack of feedback provided by other generic RO systems.

The Automatic RO Control Panel allows the home owner to easily monitor the performance of their system by using easy-to-read light up indicators for common RO functions. Certain features such as the System Flushing and Low Pressure provide added protection by automatically cleaning the RO membrane and shutting the RO system off in events of low water pressure. Low water pressure can cause an RO system to cycle on and off which can burn out the motor and increase noise level. Other features like the RO Pump and Tank Full keep you informed when the system is running and you have a full tank of purified water. With automated control it has never been easier to operate a whole house RO system!
*Offer valid on orders made after 7/01/18




IN STOCK: YES - Estimated Delivery 7-14 Days

Save More:
We offer Special Discounts to all first responders, police, fire fighters,
 active military, veterans, teachers and their families: upon request

TSM-1500 Whole House RO Package
Online Price: $4,388.00
All Orders Include Our
Exclusive RainDance Accessory Kit

*Price does not include storage tank - add your tank below



Model # TSM-1500 Whole House RO Package
System Function Whole House Water Purification System & Equipment Package
Capacity 1,500 Gallons Per Day
High Recovery Up To 50% (1:1 Ratio)
Power 110V 60Hz
Maximum Removal Capacities 2,500ppm TDS
< 0.3ppm Iron
< 0.05ppm Manganese
< 5gpg (85ppm) Hardness
*If you are over these parameters contact us for pretreatment options!
Applications Engineered for City-Treated Water, Well Water, River Water, Brackish Water Sources
Prefilters Attached Sediment & Carbon Filters - These prefilters protect to RO purifying membrane by removing sediment, debris, chlorine, pesticides, Insecticides, herbicides, THMs and organic chemicals
Post Filter Separate Remineralizer Filter/pH Correction
(Corrosion Prevention)
RO Storage Tank Not Included - Find Storage Tank Options Below
Storage Tank Delivery Pump Yes, Included
RainDance Exclusive
Whole House RO Accessories
Color Coded Tubing
RO Water Gallons Used Totalizer Monitor
TDS Water Quality Monitor
Pre-loaded Flash Drive w/ Instructions, Diagrams, Manuals
Access To Unmatched 24/7 Support
Customer & Tech Support Via Phone: 9am-5pm PST Mon-Fri
Via Live Chat: 5am-10pm PST 365 Days A Year
Via Email: 24/7 365 Days a Year

TSM-1500 Whole House RO Package Includes:
  • RainDance TSM-1500 Reverse Osmosis System:
  • Showroom Quality Polished Stainless Steel Frame & Membrane Housing
  • NSF Certified 61 Low Energy Semipermeable Membrane
  • Recirculation Valve for Higher Recovery
  • Automatic Electric RO Information Control Display Panel (included with all orders placed after July 1, 2018)
  • Pre-installed Float Switch for Atmospheric Tank
  • Pre-installed 1/2" Easy Quick Connect Fittings
  • Dimensions: 45"W x 8"D x 14"H - Total Height with attached prefilters: 37"H

Sediment & Carbon Pretreatment System - Model # TFA-500-7 Stainless Steel Dual 2.5"x 20" Sediment and Carbon TSM Shelf Prefiltration System W/ Shutoff Valve. Provides RO protection from sediment, dirt, debris, chlorine, chlorination by-products, organic chemicals, herbicides, pesticides, insecticides, radon, benzene, and much more. Sediment Filter NSF Certified 51 / Carbon Filter NSF Certified 42  -  Pretreatment Equipment Dimensions: 14”W x 8”D x 23”H - Pre-installed 1/2" Easy Quick Connect Fittings

  Remineralizing & pH Neutralizing System - Designed to keep your RO water non-corrosive and protect any copper plumbing. This calcite system adds back calcium and magnesium minerals to enhance the water taste for people who prefer drinking mineral water, while also effectively neutralizing acidity and raise the pH of the water. (1) 4.5” x 20” Big Blue Replaceable pH Cartridge mounted separately. pH cartridge NSF Certified 42 & 61 - also Includes housing, bracket, wrench -Easily installs between the RO and storage tank.
  Upgraded Delivery Pump - Fully integrated compact booster pump draws water from RO storage tank and delivers perfect water pressure to all taps. Installs quickly and easily and features one of the lowest noise levels (47 dB(A)) in it's class. Dimensions: 16"L x 7.6" W x 12"H; 1" Inlet/Outlet Ports. Power is 110v, 1-phase. 1 HP Motor. Output is 10 gpm at 50psi.
*Valid on orders placed after May 1, 2018
FREE Color Coded Installation Tubing - Perfect for the do-it-yourselfer or local plumber! RainDance is including color-coded tubing and easy quick-connect fittings for your whole house RO system to make installation a breeze. Color tubing coordinates with the RO feed water (white), product water (blue), and drain water (yellow). Includes (3) sets of 20ft of flexible 1/2" tubing.
Water Totalizing Meter - Our reverse osmosis totalizing meter accurately displays how many gallons of water you are using, making it easier for you to monitor your daily water use and track how many gallons are running through the filters.
*Valid on orders placed after April 1, 2018
Exclusive RainDance Preloaded Flash Drive - Installation has never been easier with our Whole House RO Flash Drive! Includes essential information like detailed installation instructions, pictured diagrams, owners manuals, ABC's of Plumbing Handbook, Refer-A-Friend gift card offers, and more!

  • RainDance Water Systems Exclusive Offers:
  • Free TDS Water Tester - Easily monitor and compare your water quality before and after the Whole House Reverse Osmosis Water System. This portable waterproof tester offers high accuracy total dissolved solids (TDS) measurements in a single tester!

Add Your Storage Tank: Reverse osmosis systems produce water as a small stream so a separate storage tank is required to collect purified RO water and provide on-demand water to your home.

Whole House RO Storage Tank Options
 Use or Source Your Own Atmospheric Storage Tank

 · We are now giving our customers the option of using or sourcing their own storage tank!
  · Most atmospheric storage tanks are compatible with our whole house RO packages!
  · Find the right storage tank that fits your space requirements and save even more!
  · Use your own storage tank and add our FREE float switch & float assembly!
  · Preinstalled float switch on RO conserves water by shutting off RO when tank is full!
 *Must be purchased with Whole House RO Packages at the same time.

Float Switch & Float
FREE

 RDWS 200 Gallon Atmospheric Storage Tank
  · Approx. 31" dia. x 72" ht.
  · Includes 1/2" Easy Quick Connect Inlet Fitting for RO system.
  · Includes complete float for tank and float switch on RO for full tank shut off.
 *Appearances may vary. Must be purchased with above whole house RO package.

TK-200/Float
Price: $1,195.00ea

 RDWS 300 Gallon Atmospheric Storage Tank
  · Approx. 35" dia. x 85" ht (Designed to fit through standard doorways)
  · Includes 1/2" Easy Quick Connect Inlet Fitting for RO system.
  · Includes complete float for tank and float switch on RO for full tank shut off.
 *Appearances may vary. Must be purchased with above whole house RO package.

TK-300/Float
Price: $1,295.00ea

 RDWS 500 Gallon Atmospheric Storage Tank
  · Approx. 47" dia. x 83" ht.
  · Includes 1/2" Easy Quick Connect Inlet Fitting for RO system.
 · Includes complete float for tank and float switch on RO for full tank shut off.
 *Appearances may vary. Must be purchased with above whole house RO package.

TK-500/Float
Price: $1,495.00ea

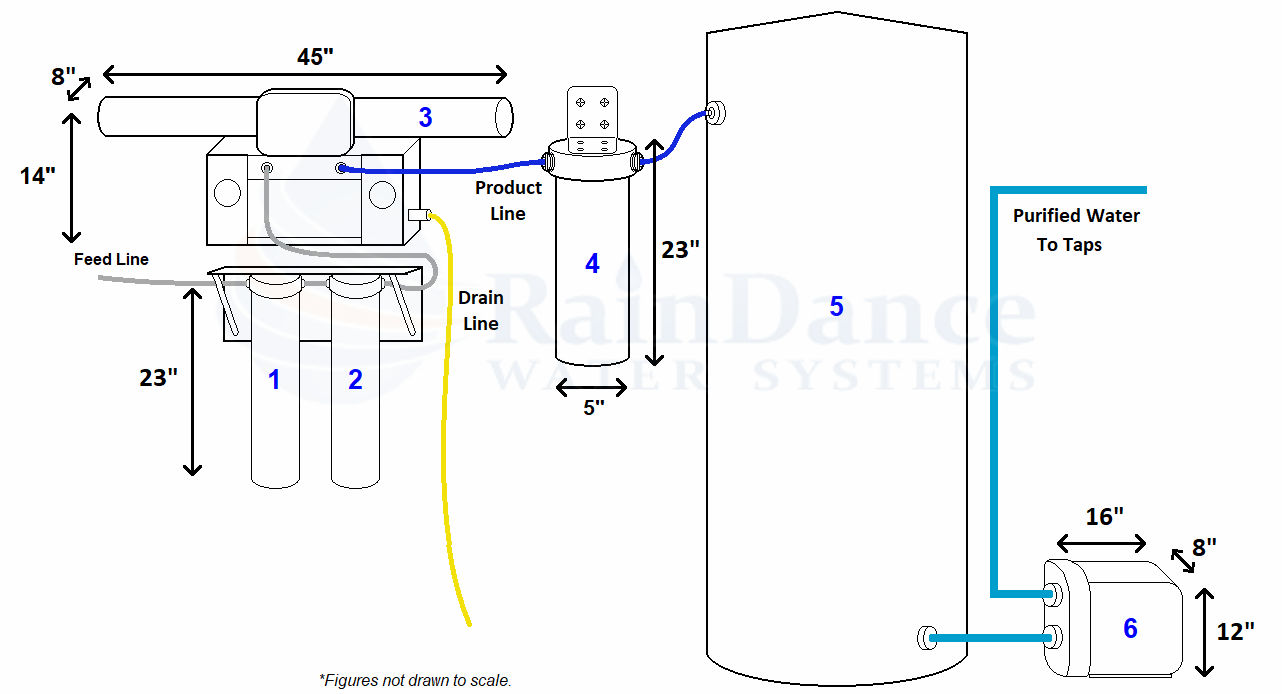

SIMPLE OPERATION: Quick Guide On How Our Whole House RO Works: pressurized water from your city treated or well water source enters the attached dual prefilter cartridge system. Then this pre-filtered water enters the TSM RO water purification system. This RO water then enters the pH neutralizer / remineralizer then begins to fill the near-by storage tank. The RO water will continue to fill the storage tank until the included tank float switch closes and shuts the entire system off.  When there is a demand for water the re-pressure delivery pump is activated and draws RO water from the storage tank to your taps. If enough water is used to the point where the float switch is reopened, the RO system is automatically reactivated and begins to replace the RO water in the tank that has been depleted.

Read Our Whole House RO Frequently Asked Questions & Concerns HERE >>>


*Capacity production rate is based on input water temperature of 25 C (77 F). If your water is colder production will be lower.
