Carwash Water Softener & Spot Free Rinse Water Equipment Guide

400gpd - 1500gpd Spot-Free Reverse Osmosis / Deionization Components & Features:

• Installation Tubing: RainDance is including color-coded tubing and easy quick-connect fittings for your commercial RO system to make installation a breeze. Color tubing coordinates with the RO feed water (white), product water (blue), and drain water (yellow). Includes 3 sets of 20ft flexible 1/2" tubing.

• Pressure Vessel/Membrane Assembly: This is where the dissolved solids are separated from the feed water. This assembly consists of 1 316 SS pressure vessel that houses the reverse osmosis (RO) membrane. Stainless steel pressure vessels are standard on all 4 models.

• Pump: The pump boosts water pressure in the pressure vessel/membrane assembly to about 150 psig to ensure high dissolved solids rejection and high flow rates.

• Motor: Used to drive the pump. Motors are Open Drip Proof construction (OPD) with thermal overload protection.

• Electronic Controller: The electronic controller accepts input commands and signals to control operation of the R.O. system.

• Solenoid Valve: Electrically operated valve that prevents water from flowing through the system when it is not in operation. The coil and body are separate replaceable units.

• Brine Flow Control: This assembly contains the orifice flow restrictor sized to produce approximately 125-175 psi in the pressure vessel/membrane.

• Vessel In Pressure Control Valve: A needle valve that controls the amount of brine from the membrane to be re-circulated back into the feed stream. This feature allows for higher recovery rates, This valve provides control of system operating pressure as well as brine flow rate and TDS.

• Tank Pressure Gauge: This gauge displays the pressure within the product water bladder storage tank. If the R.O. system is supplying product water to an atmospheric storage tank this gauge will always read zero.

• Vessel-In Gauge: This gauge displays the operating pressure at the inlet of the membrane pressure vessel. This pressure indication is used in the setup of the unit and as an early warning of membrane fouling.

• Fast Flush Valve: This valve is located on the brine flow control assembly and provides a means of bypassing the flow restrictor orifice. Periodically (at least monthly) this valve should be turned to vertical for 30 to 60 seconds and then returned to the horizontal position while the system is running. This will provide a momentary high velocity, low pressure flow across the membrane to help flush away any accumulated particles or debris.

• Product Water Check Valve: This valve is located in the product line coming out of the membrane pressure vessel. It acts to prevent back flow of product water from the pressurized storage tank into the membrane when the system is not operating.

• Low Feed Pressure Switch: This pressure switch provides a signal to the electronic controller to turn off the system in the event of low incoming feed pressure. It is factory set to cut off if the pressure drops below 15 psi.

• Atmospheric Storage Tank Float Switch: Pre-installed Float Switch - Conserves water! Shuts RO system off when storage tank is full. Includes one float switch and weight for system control by tank level. Click Here to view our atmospheric storage tank and pump options.

• Reverse Osmosis Frame: "showroom quality" The system frame includes a base and two channel frames fabricated in stainless steel. All fasteners on the system are stainless steel. The frame provides a mounting for all the RO system components.

• Rubber Feet: These allow for a stable mounting on an uneven surface and for vibration and sound mitigation.

• Inlet Feed Water Port: Filtered feed water is supplied to the system via this 1/2” tube size quick connector.

• RO Product Water Port: Purified product water leaves the system via this 1/2” tube size quick connector. Typically this connector will be plumbed to the product water storage tank.

• RO Drain Port: Concentrated brine water leaves the system through this 1/2” tube size quick connector.

• Post DI System: Bed High Purity Post DI Replaceable Cartridge: Ultra High Purity water > 18 Megohm Deionizer Mixed bed cartridge - this system is installed after the RO unit, completing the purification process and providing spot-free water. (1) 4” x 20” Big Blue Deionization Cartridge mounted separately. Includes housing, bracket, wrench and (1) DI cartridge.

• Support Equipment: Sediment & carbon de-chlorination and chloramine removal pretreatment filters are included to prevent premature fouling and prolong the life of the RO membrane.

• Replacement Filters: All RO systems include a 3 year supply of sediment & carbon prefilters at no extra charge.

• Testing Equipment: Separate conductivity (ec), total dissolved solids (TDS) and water temperature monitors are included to assure your RO/DI system is working at optimum performance.

• Water Totalizing Meter - Our reverse osmosis totalizing meter accurately displays how many gallons of water you are using, making it easier for you to monitor your daily water use and track how many gallons are running through the filters.

• Shipping: We offer free delivery within the continental USA

RainDance RO/DI Spot-Free Water Filters For Carwashes

Removes High Total Dissolved Solids And Excessive Minerals From Water Supplies

Part #	Gallons Per Day	Dimensions	Power	Price

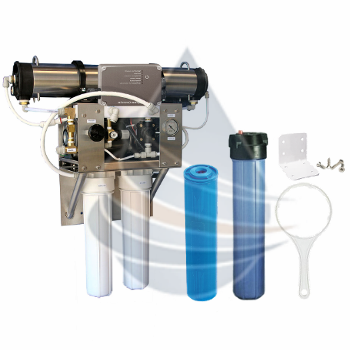

RainDance-RODI-400	400GPD	28"W x 8"D x 12"H w/ attached prefilters - 25"H	110v, 60hz, 6.5A	RainDance-RODI-400: $4,498.00

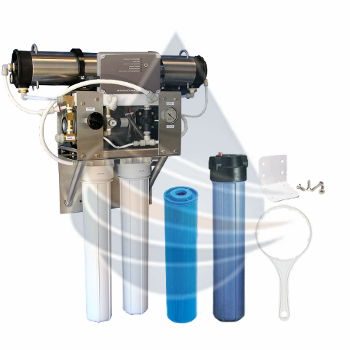

RainDance-RODI-800	800GPD	28"W x 8"D x 14"H w/ attached prefilters - 37"H	110v, 60hz, 11A	RainDance-RODI-800: $4,698.00
RainDance-RODI-1200	1,200GPD	28"W x 8"D x 14"H w/ attached prefilters - 37"H	110v, 60hz, 11A	RainDance-RODI-1200: $4,798.00
RainDance-RODI-1500	1,500GPD	45"W x 8"D x 14"H w/ attached prefilters - 37"H	110v, 60hz, 11A	RainDance-RODI-1500:  $4,998.00

Operating Parameters: Max TDS-2500ppm, Total iron is less than 0.3ppm, Manganese is less than 0.05ppm, Water hardness below 5 gpg.

Commercial Reverse Osmosis For Car Washes

RainDance High Capacity RO Systems

2,000 - 12,000 Gallons Per Day

In almost all reverse osmosis applications, providing pretreatment for the feed water protects and extends the life of the purification. While there are some exceptions, some type of pretreatment equipment is almost always used to protect the RO system. We offer complete pretreatment capabilities that include, iron filters, sediment removal, water softeners, chlorine filters, antiscalant systems, UV ultraviolet disinfection and more. Contact Sales@RainDanceWaterSystems.com for all your pretreatment needs. Note: Any free pretreatment offers will be included in your quote.

Reverse Osmosis Storage Tank Options:

Reverse osmosis systems produce water as a small stream, so a separate storage tank is needed to store water for use. Use your own storage tank or combine with one of ours!

Use or Source Your Own Atmospheric Storage Tank   · We are now giving our customers the option of using or sourcing their own storage tank!   · Most atmospheric storage tanks are compatible with our whole house RO packages!   · Find the right storage tank that fits your space requirements and save even more!   · Use your own storage tank and add our FREE float switch & float assembly!   · Preinstalled float switch on RO conserves water by shutting off RO when tank is full!  *Must be purchased with RO Packages at the same time.	Float Switch & Float FREE
200 Gallon Atmospheric Storage Tank  · Approx. 31" dia. x 72" ht.  · Includes complete float for tank and float switch on RO for full tank shut off. *Appearances may vary	TK-200/Float Price: $1,395.00ea

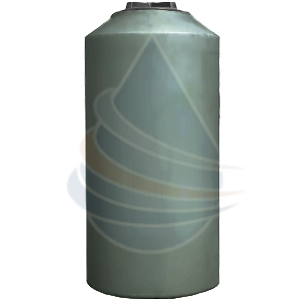

300 Gallon Atmospheric Storage Tank  · Approx. 35" dia. x 85" ht. (Designed to fit through standard doorways)  · Includes complete float for tank and float switch on RO for full tank shut off. *Appearances may vary	TK-300/Float Price: $1,495.00ea

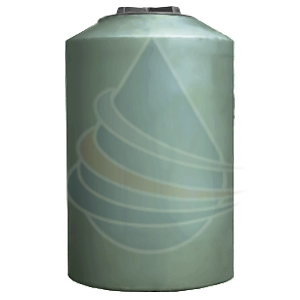

500 Gallon Atmospheric Storage Tank  · Approx. 47" dia. x 83" ht.  · Includes complete float for tank and float switch on RO for full tank shut off. *Appearances may vary	TK-500/Float Price: $1,795.00ea
