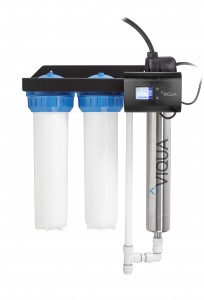

Viqua IHS22-D4 12gpm Whole House Integrated UV Water Treatment System For Bacteria & Virus Removal

Home > UV System Catalog > Viqua IHS22-D4

Viqua IHS22-D4 UV Product Navigation:
Specifications | Features | Accessories | Questions & Answers

RainDance Water Systems Product
	Viqua IHS22-D4 12gpm Integrated Ultraviolet Disinfection System With Sediment & Carbon Pretreatment Filters For The Removal Of Sediment, Rust, Turbidity, Cloudy Water, Chlorine, Organic Chemicals, Thms, Pesticides, Insecticides and Herbicides IHS22-D4 UV Price: $1,620.00 - Ask For Current Online Specials Before Ordering - Simple, Inexpensive, & Environmentally-Friendly Chemical-Free Bacteria & Virus Treatment - Function: Compact UV water disinfection system designed for the larger home or light commercial application - where bacteria and virus removal is required! - Features: (2) Integrated pretreatment housings - (1) to remove sediment, debris and turbidity down to 5 microns and (1) carbon filter to remove chemicals, organic chemcials, & thms. - Sizing: Suitable For Up To 12gpm Flow rates - Removal Capacities: 99.99% Destruction of Bacteria, Viruses, and Protozoan Cysts - Support: When other companies close for the day, weekend and holidays, we are still open and available to answer your questions and offer tech support. Our Online Live Chat is available from 5am to 10pm PST, 365 days a year (holidays included) - Emails & Contact Forms are also answered 7 days a week 365 days a year (holidays included) or if you prefer to call (1-877-788-8387) or (1-858-927-4690) our office hours are from 9am-5pm PST Monday-Friday. - Company: For more than 20 years, RainDance Water Systems has been providing proven long term water treatment equipment for residential homes, commercial business, farms and livestock.		IN STOCK - Yes Viqua IHS22-D4 W/ Integrated Pretreatment $1,620.00 Includes Free Delivery Within The Continental US Have a Question Or Need Help With Your Purchase? Talk To A Certified RainDance Water Systems Specialist Call 1-877-788-8387

Effective in killing off bacteria and viruses such as:

Coliform Bacteria

Leptospira Interrogans (Infectious Jaundice)

Salmonella Typhosa (Typhoid Fever)

Bacteriophage (E. coli)

Hepatitis Virus

Chlorella Vulgaris

Influenza Virus

Legionella Pneumophila (Legionnaires' Disease)

UV Disinfection is suitable for Residential, Industrial & Commercial

Agriculture, Dairy, Livestock, Irrigation Water

Food & Beverage Industry

Beer Breweries, Wineries

Drinking Water

Ice Companies

Well Water, Whole House Water Purification

Aquaculture

Restaurants, Schools, Hospitals, Hotels

Product Specifications
Operating Conditions	Flow Rate (30mJ/cm2 Dose): 12 gpm Flow Rate (40mJ/cm2 Dose): 9 gpm Ambient Temperature: 36F-104F Pressure Range: 5-125 psi	Parameters	99.99% destruction of bacteria, viruses, and protozoan cysts Integrated Pretreatment Will Remove Sediment, Turbidity & Chemicals Total iron is less than 0.3ppm - No Iron Bacteria Hydrogen Sulfide is less than 0.05ppm Suspended Solids is less than 10ppm Manganese is less than 0.05ppm Water Hardness below 7 gpg
Dimensions	Inlet/Outlet: 3/4” FNPT / MNPT Overall: 25.5" x 12" x 28" Controller: 8.5" x 6" x 3" Weight: 35lbs	General	Chamber Material 304 SS Visual “Power On” Visual Lamp Life Remaining Audible Lamp Life Failure Audible Lamp Replacement Reminder Maintenance UV Lamp Should Be Replaced Every 12 Months
Power	Voltage: 100-240v Frequency: 50-60hz Power Consumption: 50w	Warranty	10yr for UV Chamber 1yr for UV Lamps, Sleeves & Sensors

	Product Features
	- Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli, and viruses not visible to the naked eye. - The special lamp plug ensures that no one can power the UV lamp if it’s not in the UV chamber. - Flexible stainless steel pipe is both more aesthetically pleasing and functional than the traditional plastic piping - Indicator lights show the status of system components and warning lights appear when system maintenance is required. - Our high output UV lamp is engineered to treat variable water conditions. - System comes supplied with sediment filter to remove particles commonly found in water and carbon block filter to remove chemicals and reduce odors, color. - Reduces the need for expensive pre-treatment systems. - System comes equipped with high flow filters allowing the water pressure to remain consistent. - Powder-coated, heavy gauge steel bracket for durability & aesthetics.

FREE Product Accessories Included

RainDance Preloaded Flash Drive - Installation is made easy with our UV System Flash Drive, which includes essential information such as detailed installation instructions, pictured diagrams, manuals, ABC's of Plumbing Handbook, and more!

Product Questions & Answers

Have a UV question that hasn't been answered? Live chat with a RainDance specialist for a quick answer!

Q: How does the UV system remove bacteria?
A: As water flows past the UV lamp(s) in a UV disinfection system, microorganisms are exposed to Ultraviolet light energy. Ultraviolet light alters the DNA material in cells so that bacteria, viruses, molds, algae and other microorganisms can no longer reproduce. The microorganisms are considered dead, and the risk of disease from them is eliminated. The process of UV Disinfection is accomplished without adding any harmful chemicals to your drinking water and does not distort the water or effect its pH value.

Q: Will a UV system remove iron bacteria?
A: No, iron bacteria is a different variety of bacteria that will coat the entire UV system in a slimy substance, causing fouling and costly replacement. Iron bacteria is not necessarily a harmful bacteria, it is more of a nuisance and requires a chemical oxidation followed by filtration for effective removal

Q: Do I need a water softener with a UV system?
A: If your water hardness is over 7gpg (120mg/L) a water softener is recommended to prevent scale build-up on the quartz sleeve and reduce cleaning and replacement frequency.

Q: Do I need a sediment prefilter?
A: Sediment, debris, and turbidity can "shade" the UV lamp intensity which prevents effective disinfection and may cause bacteria to pass through the UV system. To ensure the most effective treatment, The Viqua IHS22-D4 includes (2) integrated prefilters First Stage: A 5 micron sediment & turbidity removal prefilter - Second Stage (1) A carbon filters to removes odors, chemicals, and off-colors

Q: Do I need a plumber to install?
A: If you are handy and have basic plumbing skills you should have no problem with this installation. We provide detailed installation instructions, pictures, and offer several means of tech support for you or your plumber.

Benefits:

Pre-Filter Solution: Includes two 20″ filter housing with 5 micron sediment and taste/odor/chemical removal cartridges.

Ease of Maintenance: Audible lamp replacement reminder and countdown timer with digital display. Indicator lights show the status of system components. Warning lights appear when system maintenance is required.

Reliable: The constant current feature ensures stable UV lamp output, regardless of power fluctuations

High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life (9000 hours)

Space Efficient: High UV output lamp technology allows for a smaller footprint while providing the same UV performance as a longer chamber
