Residential UV Disinfection Bacteria Treatment - Water Purification Systems

Whole House Bacteria Filters - Chemical FREE UV Water Disinfection Systems



Homes, Private Wells, Lakes, Ponds, Cisterns, Campgrounds, Hotels, Hospitals, Restaurants, Breweries, Dairies, Laboratories, Pharmaceutical

Water quality can deteriorate without notice, Due to episodic, climatic, seasonal, or other changes. Examples: drought or precipitation, development, earth movement, agricultural practices, changes in surrounding aquifer demand and water level, etc. Unfortunately, most people don't take precautions until they've experienced a bad water test. And then, the typical response is to simply pour chlorine bleach into their well. Using chemicals for disinfection is a short term solution. More importantly, chemicals can affect the taste & odor of your water.

Environmentally-friendly and chemical-free, UV is a natural process that adds no chemicals and does not affect the taste or odor of your water.

Automatic lamp replacement reminder - The helpful digital display provides system information, including how many months the UV lamp has been in use. Once each year, an automatic visual and audible reminder will notify you that it's time to replace the lamp.

Safe and easy to maintain - Replacing the UV bulb is simple and can be completed in minutes - without tools.
Note: Only install these UV systems when: Total iron is less than 0.3ppm, hydrogen sulfide is less than 0.05ppm, suspended solids is less than 10ppm, Manganese is less than 0.05ppm, Water hardness below 7 gpg.
How Ultraviolet Disinfection System Works
As water flows past the UV lamp(s) in a UV disinfection system, microorganisms are exposed to Ultraviolet light energy. Ultraviolet light alters the DNA material in cells so that bacteria, viruses, molds, algae and other microorganisms can no longer reproduce. The microorganisms are considered dead, and the risk of disease from them is eliminated. These Ultraviolet Disinfection Systems are designed for commercial & industrial applications. The process of UV Disinfection is accomplished without adding any harmful chemicals to your drinking water and does not distort the water or effect its pH value. UV Disinfection has an effective kill rate of 99.99% of most living microorganisms such as bacteria & viruses.

Effective in killing off bacteria and viruses such as:

  • Coliform Bacteria
  • Leptospira Interrogans (Infectious Jaundice)
  • Salmonella Typhosa (Typhoid Fever)
  • Bacteriophage (E. coli)
  • Hepatitis Virus
  • Chlorella Vulgaris
  • Influenza Virus
  • Legionella Pneumophila (Legionnaires' Disease)

UV Disinfection is suitable for Industrial & Commercial

  • Agriculture, Dairy, Livestock, Irrigation Water
  • Food & Beverage Industry
  • Beer Breweries, Wineries
  • Drinking Water
  • Ice Companies
  • Well Water
  • Aquaculture
  • Restaurants, Schools, Hospitals, Hotels

RainDance Water Systems UV Pricing & Information - UV Ultraviolet systems provides treatment for flow rates of 10gpm to 40gpm delivering a 30 mJ/cm2 dose. Home owners can now take drinking water into their own hands & avoid the worry of Boil Water Advisories (BWA) that are constantly in the news. This system offers a compact water treatment solution with a small footprint for simple installation. The system has an electronic controller which comes equipped with a simple LED screen for visual management of the system's performance and ultimately simple troubleshooting. The controller offers constant current, universal input and full electrical certification.

Nature's way to protect your water without the addition of harmful chemicals! VIQUA's ultraviolet disinfection systems offer 99.99% destruction of bacteria, viruses, and protozoan cysts (Giardia Lamblia, Cryptosporidium).



.
FREE UPGRADE Sediment/Turbidity Pre-Filtration System - Did you know uv systems require at least a 5 micron sediment prefilter - this allows optimum disinfection performance! Order today and we will Include our UPGRADED 5 micron reusable washable sediment prefitler package. Special Offer Includes: (1) 5 Micron Reusable Washable Sediment Pre-Filter Cartridge, 4.5" x 10" Filter Housing w/ 1" Plumbing Ports, Mounting Bracket, and Wrench for easy maintenance.
*Offer valid on VH200 UV orders - offer will end without notice

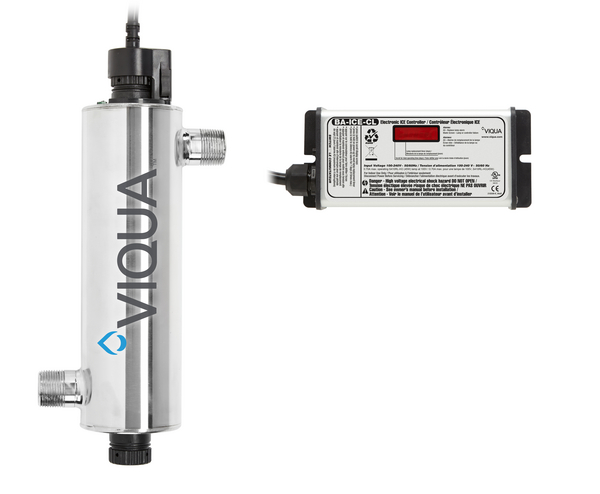

VIQUA VH-200 *9gpm-*16gpm Light Commercial UV Disinfection System
  • Space Efficient: High UV output lamp technology allows for a smaller footprint while providing the same UV performance as a longer chamber.
  • Ease of Maintenance: Audible lamp replacement reminder and countdown timer with digital display. A controller will also go into alarm if the lamp fails.
  • Reliable: The constant current feature ensures stable UV lamp output, regardless of power fluctuations.
  • High-performance UV lamp, rigorously tested to provide a consistent output over the entire lamp life (9000 hours).
  • Application: Perfect for a wide range of whole-home, point-of-entry water treatment solutions in homes, cottages, or light commercial business applications.

VH200-UV VIQUA Price: $585.00
Exclusively From RainDance Water Systems:
  • Includes Separate Sediment Pre-Filter
  • Includes  Separate Water Leak Detector
  • Includes Pre-Loaded Flash Drive Containing UV Installation Instructions, Owners Manual, Diagrams & Parts List



Model # VH-200 VIQUA UV System
Operating Conditions Flow Rates:
*Flow Rate (16mJ/cm2 Dose): 16 gpm
*Flow Rate (30mJ/cm2 Dose): 9 gpm
Flow Rate (40mJ/cm2 Dose): 7 gpm

Ambient Temperature: 36F-104F
Pressure Range: 5-125 psi
Dimensions Inlet/Outlet: 3/4” - 1” MNPT COMBO
Chamber Length: 17.75" x 3.5"
Controller: 7.25" x 3.5" x 2.5"
Weight: 12.5lbs
Electrical Voltage: 100-240v
Frequency: 50-60hz
Power Consumption: 35w (1.5 amps)
General  Chamber Material 304 SS
Visual “Power On”
Visual Lamp Life Remaining
Audible Lamp Life Failure
Audible Lamp Replacement Reminder
Maintenance
UV Lamp Should Be Replaced Every 12 Months

Warranty  10yr for UV Chamber
1yr for UV Lamps, Sleeves & Sensors
Parameters 99.99% destruction of bacteria, viruses, and protozoan cysts
Total iron is less than 0.3ppm
Hydrogen Sulfide is less than 0.05ppm
Suspended Solids is less than 10ppm
Manganese is less than 0.05ppm
Water Hardness below 7 gpg

VH200 9GPM UV System Features

Specially designed and tested Sterilume™ -HO lamps provide consistent and reliable ultraviolet output over the entire life of the lamp (9000 hours) to ensure continuous purification. High output lamps allow for small footprint while providing the same UV performance as a standard output lamp in a longer chamber.
Built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation.

Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli, and viruses not visible to the naked eye.
The system is simple to maintain and service allowing for easy lamp replacement.
Safety-Loc™ connector with interlock that ensures power is disconnected before lamp can be removed.
We're here when you need us! Unmatched customer and tech support with multiple channels of communication at all hours of the day and night - 365 days a year!


.

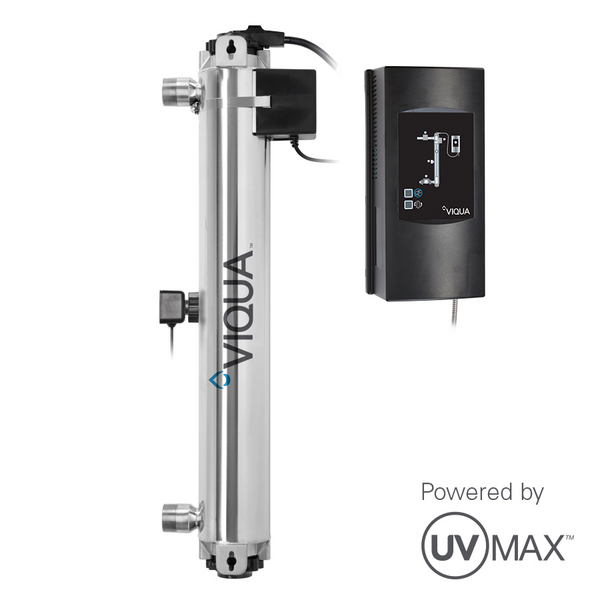

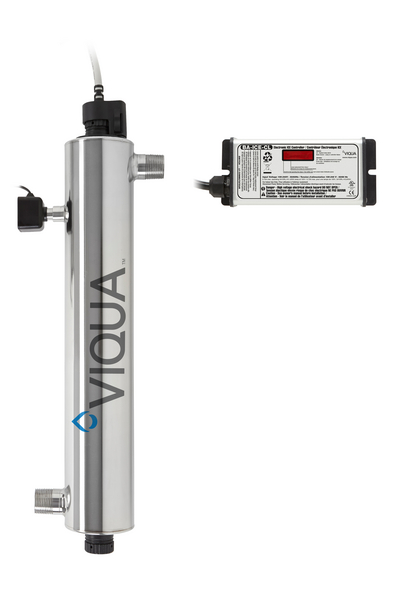

VIQUA VH-410M 18gpm Whole House UV Disinfection System w/ UV Intensity Monitor
Iron Max Iron Filter
VH-410M VIQUA Price: $985.00
Exclusively From RainDance Water Systems:
  • Includes Separate Sediment Pre-Filter
  • Includes  Separate Water Leak Detector
  • Includes Pre-Loaded Flash Drive Containing UV Installation Instructions, Owners Manual, Diagrams & Parts List



Model # VH-410M 18gpm VIQUA UV System
Operating Conditions Flow Rate: 18gpm @ 30mJ/cm2 Dose
Ambient Temperature: 36F-104F
Pressure Range: 5-125 psi
Dimensions Inlet/Outlet: 3/4" FPT, 1" MPT Combo
Chamber Length: 28.8"
Chamber Diameter: 3.5"
Power Supply: 7.3" x 3.2" 2.5"
Electrical Voltage: 110v
Frequency: 60hz
Power Consumption: 60w
General Polished 304 L Stainless Reactor Chamber
Audible Lamp Failure Indicators
Lamp Timer
UV Intensity Monitor
Maintenance
UV Lamp Should Be Replaced Every 12 Months
Parameters 99.99% destruction of bacteria, viruses, and protozoan cysts
Total iron is less than 0.3ppm
Hydrogen Sulfide is less than 0.05ppm
Suspended Solids is less than 10ppm
Manganese is less than 0.05ppm
Water Hardness below 7 gpg

Viqua VH-410M 18GPM UV System Features
✔ High-efficiency, compact, UV disinfection system
Designed for commercial scale flow rates up to 18 gpm
✔ Superior Lamp Technology - High Output
We're here when you need us! Unmatched customer and tech support with multiple channels of communication at all hours of the day and night - 365 days a year!

UV Intensity Monitor
Features "count down" timer display and lamp change reminder
Additional 1 Year Controller Warranty
Additional 3 Years Chamber Warranty
Greater Space Efficiency
S-Shaped Chamber Configuration
UL Certified

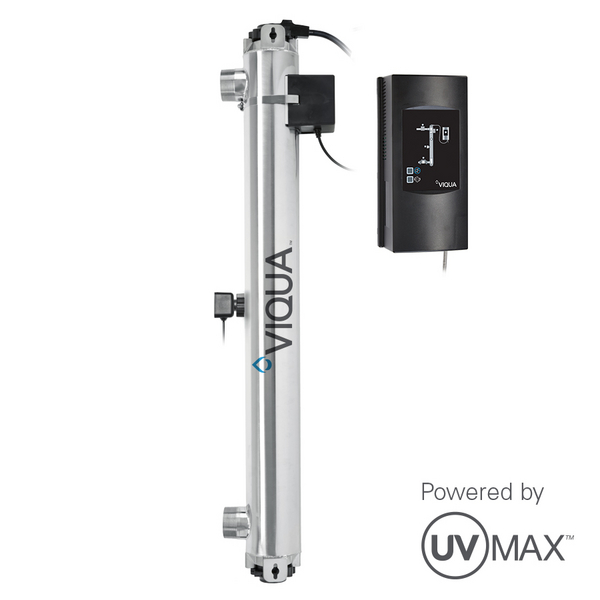

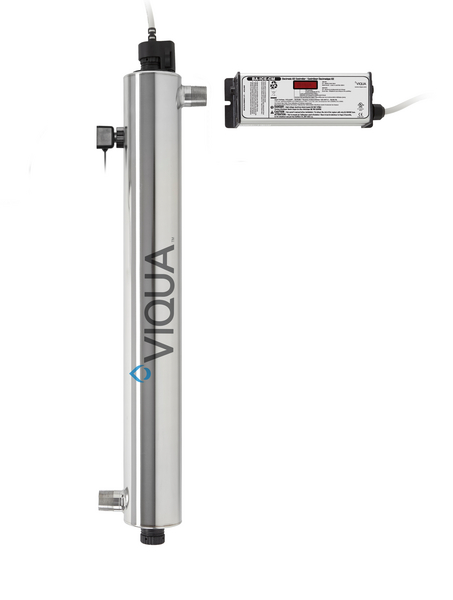

VIQUA VP-600M 30gpm Whole House UV Disinfection System w/ UV Intensity Monitor
Iron Max Iron Filter
VP-600M VIQUA Price: $1,280.00
*Online Special Sale Price!
Exclusively From RainDance Water Systems:
  • Includes Separate Sediment Pre-Filter
  • Includes  Separate Water Leak Detector
  • Includes Pre-Loaded Flash Drive Containing UV Installation Instructions, Owners Manual, Diagrams & Parts List



Model # VP-600M 30gpm VIQUA UV System
Operating Conditions Flow Rate: 30gpm @ 30mJ/cm2 Dose
Ambient Temperature: 36F-104F
Pressure Range: 5-125 psi
Dimensions Inlet/Outlet: 1" MPT
Chamber Length: 30.7"
Chamber Diameter: 3.5"
Power Supply: 7.3" x 3.2" 2.5"
Electrical Voltage: 110-220v
Frequency: 60hz
Power Consumption: 60w
General Polished 304 L Stainless Reactor Chamber
Audible Lamp Failure Indicators
Lamp Timer
UV Intensity Monitor
Maintenance
UV Lamp Should Be Replaced Every 12 Months
Parameters 99.99% destruction of bacteria, viruses, and protozoan cysts
Total iron is less than 0.3ppm
Hydrogen Sulfide is less than 0.05ppm
Suspended Solids is less than 10ppm
Manganese is less than 0.05ppm
Water Hardness below 7 gpg

Viqua VP-600M 30GPM UV System Features
✔ High-efficiency, compact, UV disinfection system
Designed for commercial scale flow rates up to 30 gpm
✔ Superior Lamp Technology - High Output
We're here when you need us! Unmatched customer and tech support with multiple channels of communication at all hours of the day and night - 365 days a year!

UV Intensity Monitor
Features "count down" timer display and lamp change reminder
Additional 1 Year Controller Warranty
Additional 3 Years Chamber Warranty
Greater Space Efficiency
S-Shaped Chamber Configuration
UL Certified



VIQUA IHS22-D4 12gpm Integrated UV Disinfection & Filtration System
Treats Bacteria, Lead, Chlorine, Sediment, Cloudy Water & Turbidity

Iron Max Iron Filter

IHS22-D4 Complete Integrated UV Price: $1,320.00

*Online Special Sale Price!



Model # IHS22-D4 12gpm VIQUA UV System
Operating Conditions Flow Rate: 12gpm @ 30mJ/cm2 Dose
Ambient Temperature: 36F-104F
Pressure Range: 5-125 psi
Dimensions Inlet/Outlet: 3/4" NPT
Overall Dimensions: 25.5" x 12" x 28"
Weight: 35lbs
Power 110v 60hz 50W
Prefilters (1) 20" 5 micron Sediment, Debris, Turbidity Prefiltration
(1) 20" Carbon Taste, Odor, & Lead Removal Prefiltration
Parameters 99.99% destruction of bacteria, viruses, and protozoan cysts
Total iron is less than 0.3ppmm
Hydrogen Sulfide is less than 0.05ppmm
Suspended Solids is less than 10ppmm
Manganese is less than 0.05ppmm
Water Hardness below 7 gpg

Viqua IHS22-D4 Integrated UV features:
  • High Flow 12gpm Space Saving Design!
  • Perfect integrated UV water purification for whole house, drinking water systems, well water, city water, livestock, and more.
  • System comes supplied with sediment filter and carbon block to filter lead, insecticides, herbicides, pesticides, chlorine, color, chemical tastes, cloudy water and sediment particles commonly found in water. Reduces the need for expensive pre-treatment systems!
  • The special lamp plug ensures that no one can power the UV lamp if it's not in the UV chamber.
  • Lamps and sleeves are assembled together for ease of handling. They can be replaced separately, in minutes and without tools.
  • The reference card outlines the most important system functions and maintenance for quick, on-the-spot questions.
  • Our high output validated UV lamp is engineered to treat variable water conditions.
  • The system comes equipped with high flow filters allowing the water pressure to remain consistent.
  • Bracket is a gauge steel that is powder coated for both durability and aesthetics.
  • NEW LCD controller features a large backlit display for easy reading, simultaneously displaying lamp life remaining, support contact information, and lamp replacement reminder that indicates when the lamp needs to be replaced, ensuring continued water safety. The intuitive, user friendly menu is dealer programmable and allows the user to quickly find the replacement parts needed for the system by using the replacement parts menu, as well as on board quick-reference instructions for system troubleshooting
  • We're here when you need us! Unmatched customer and tech support with multiple channels of communication at all hours of the day and night - 365 days a year!
.



VIQUA IHS22-E4 22gpm Integrated UV Disinfection & Filtration System
Treats Bacteria, Lead, Chlorine, Sediment, Cloudy Water & Turbidity

Iron Max Iron Filter

IHS22-E4 Complete Integrated UV Price: $1,665.00

*Online Special Sale Price!



Model # IHS22-E4 22gpm VIQUA UV System
Operating Conditions Flow Rate: 22gpm @ 30mJ/cm2 Dose
Ambient Temperature: 36F-104F
Pressure Range: 5-125 psi
Dimensions Inlet/Outlet: 1" NPT
Overall Dimensions: 25" x 12" x 36.6"
Weight: 38lbs
Power 110v 60hz 83W
Prefilters (1) 20" 5 micron Sediment, Debris, Turbidity Prefiltration
(1) 20" Carbon Taste, Odor, & Lead Removal Prefiltration
Parameters 99.99% destruction of bacteria, viruses, and protozoan cysts
Total iron is less than 0.3ppmm
Hydrogen Sulfide is less than 0.05ppmm
Suspended Solids is less than 10ppmm
Manganese is less than 0.05ppmm
Water Hardness below 7 gpg

Viqua IHS22-E4 Integrated UV features:
  • High Flow 22gpm Space Saving Design!
  • Perfect integrated UV water purification for large home, craft beer breweries, food & beverage business, drinking water systems, well water, city water, livestock, restaurants, and more.
  • System comes supplied with sediment filter and carbon block to filter lead, insecticides, herbicides, pesticides, chlorine, color, chemical tastes, cloudy water and sediment particles commonly found in water. Reduces the need for expensive pre-treatment systems!
  • The special lamp plug ensures that no one can power the UV lamp if it's not in the UV chamber.
  • Lamps and sleeves are assembled together for ease of handling. They can be replaced separately, in minutes and without tools.
  • The reference card outlines the most important system functions and maintenance for quick, on-the-spot questions.
  • Our high output validated UV lamp is engineered to treat variable water conditions.
  • The system comes equipped with high flow filters allowing the water pressure to remain consistent.
  • Bracket is a gauge steel that is powder coated for both durability and aesthetics.
  • NEW LCD controller features a large backlit display for easy reading, simultaneously displaying lamp life remaining, support contact information, and lamp replacement reminder that indicates when the lamp needs to be replaced, ensuring continued water safety. The intuitive, user friendly menu is dealer programmable and allows the user to quickly find the replacement parts needed for the system by using the replacement parts menu, as well as on board quick-reference instructions for system troubleshooting
  • We're here when you need us! Unmatched customer and tech support with multiple channels of communication at all hours of the day and night - 365 days a year!






NSF 55 Class A Certified UV Disinfection Series

If you are required to install a NSF 55 Class A Certified UV Water Treatment System we have the solution!

RainDance Water Systems Viqua UV Pricing & Information - NSF 55 Class A UV Ultraviolet systems provides treatment for flow rates of 10gpm to 30gpm. Commercial Businesses and home owners can now take drinking water into their own hands & avoid the worry of Boil Water Advisories (BWA) that are constantly in the news. This system offers a compact water treatment solution with a small footprint for simple installation. Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli and viruses not visible to the naked eye. The Viqua NSF Certified UV systems use a revolutionary lamp with twice the output of current high output lamps, giving you compact single-lamp systems that are half the size of their predecessors. Revolutionary amalgam lamps last up to two years, reducing maintenance requirements. The CoolTouch significantly reduces water temperature and does not waste any water. Easy Quarter-Twist Assembly: A quarter-twist to the positive stop and you're done. No tools and no risk of over tightening. The power supply has an intuitive interface  showing you the performance of the system. All connections are color coded simply plug and play! These systems are suited for home or light-commercial type applications with constant flow demands. They are simple to install and maintain, allowing for a simple water solution! Plumb 2 or more UV systems in parallel for higher flow rate applications! The optional COMMcenter displays dose in real-time and can monitor up to 9 UV systems - that's up to 270 gpm!

VIQUA's ultraviolet disinfection systems offer 99.99% destruction of bacteria, viruses, and protozoan cysts (Giardia Lamblia, Cryptosporidium).

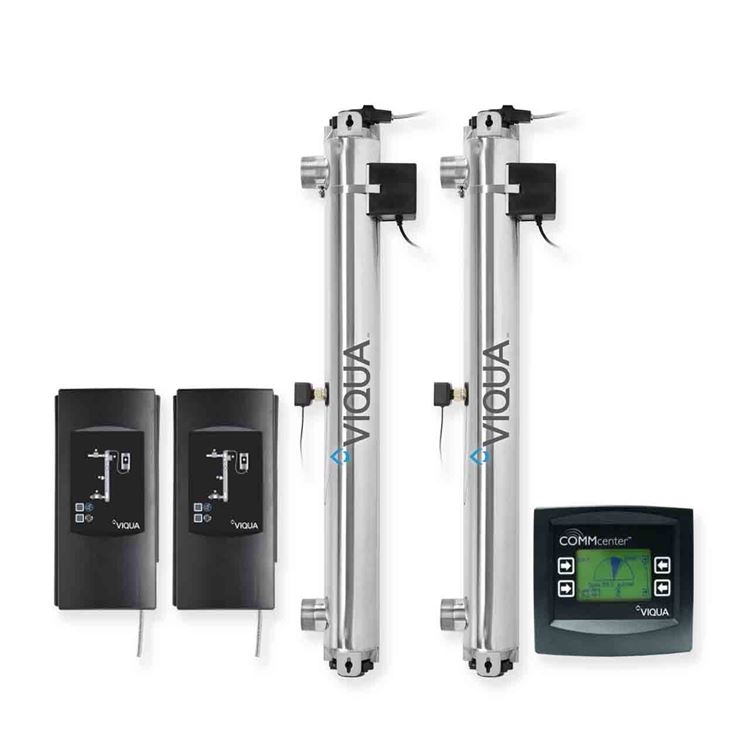

UPGRADE: Add an optional COMMcenter commenter, this displays UV dose in real-time, alarm history, lamp hours and other performance parameters for 1 or up to 9 systems.

Using a Mini-SD Card - The COMMcenter has the ability to store data on the performance of your UV system(s) to a mini-SD card, Mini-SD cards are available at various retailers. Information is recorded every minute and a 512MB card should store 18 years worth of information. To use this data-logging feature, simply insert a mini-SD card into the slot on the left side of the COMMcenter. To retrieve information simply insert the SD card into a card reader that is attached to your computer. Perfect for applications, such as DOH that may require you to generate daily reports as to the status of the uv system. The optional feature is available for the PRO-10, PRO-20 and PRO-30 UV System. The COMMcenter can be purchased with any PRO-10, 20, or PRO30 UV or can be added at a later date.

Some state and regional regulators will require only NSF® certified UV water purifiers be installed. We offer 10gpm, 20gpm and 30gpm NSF 55 Class A UV systems to ensure that your water treatment systems and components comply with your state and regional laws. For higher flow rate requirements 2 or more of these UV systems can be plumbed in paralleled.

NSF 55 Class A systems (40 mJ/cm2) are designed to disinfect and/or remove microorganisms, including bacteria and viruses, from contaminated water to a safe level. Class A systems may claim to disinfect water that may be contaminated with pathogenic bacteria, viruses, Cryptosporidium or Giardia.

VIQUA NSF 55
High Output
UV Disinfection Systems

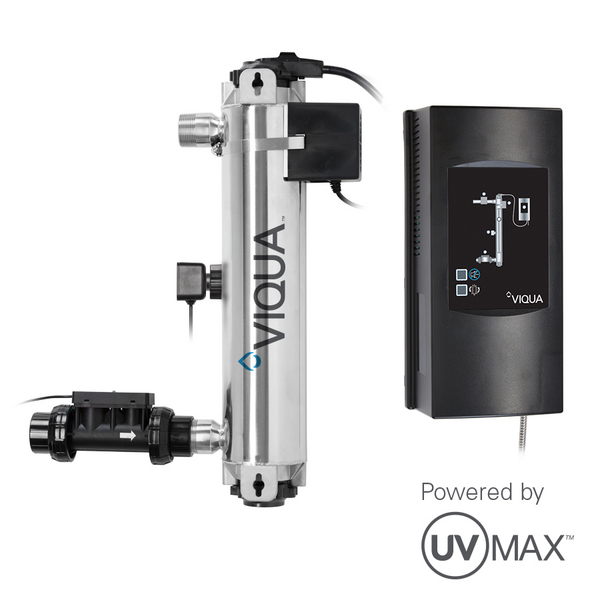

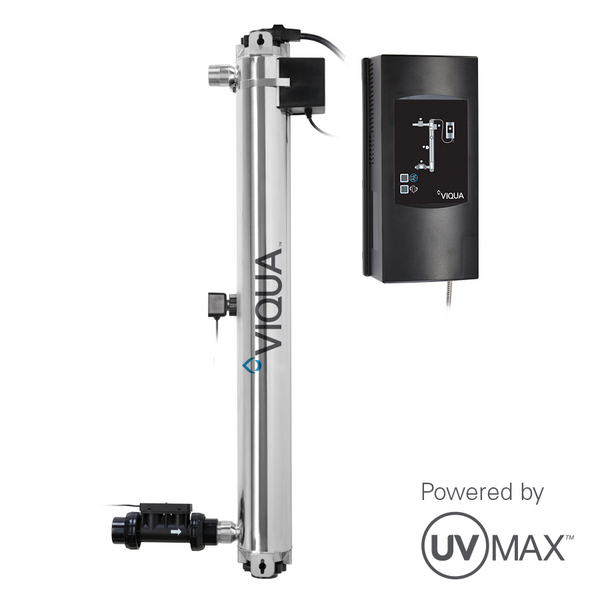

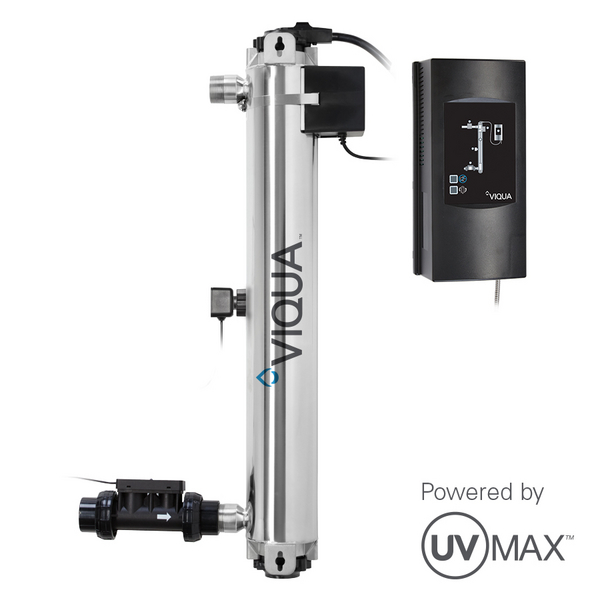

VIQUA Model # PRO-10 PRO-20 PRO-30
Flow Rate
*Rated Flow for NSF 55
Class A Certification
10gpm 20gpm 30gpm
UV Chamber
Dimensions
22"L x 4"D 31"L x 4"D 41"L x 4"D
Power Supply
Dimensions
13" x 6.5" 13" x 6.5" 13" x 6.5"
Voltage 120/240v - 50-60hz 120/240v - 50-60hz 120/240v - 50-60hz
MAX Current / Power
Consumption
1.2 Amp / 120 Watts 1.6 Amp / 160 Watts 2.4 Amp / 230 Watts
Lamp
Power
100 Watts 140 Watts 200 Watts
Inlet/Outlet
Port Size
1.25" MNPT
1" FNPT "combo"
1.25" MNPT
1" FNPT "combo"
1.25" MNPT
1" FNPT "combo"


UV Pricing

*Free Shipping Within
The Continental US

PRO-10: $2,615.00
Exclusively From RainDance Water Systems:
  • Includes Separate Sediment Pre-Filter
  • Includes  Separate Water Leak Detector
  • Includes Pre-Loaded Flash Drive Containing UV Installation Instructions, Owners Manual, Diagrams & Parts List

PRO-20: $3,170.00
Exclusively From RainDance Water Systems:
  • Includes Separate Sediment Pre-Filter
  • Includes  Separate Water Leak Detector
  • Includes Pre-Loaded Flash Drive Containing UV Installation Instructions, Owners Manual, Diagrams & Parts List

PRO-30: $4,165.00
Exclusively From RainDance Water Systems:
  • Includes Separate Sediment Pre-Filter
  • Includes  Separate Water Leak Detector
  • Includes Pre-Loaded Flash Drive Containing UV Installation Instructions, Owners Manual, Diagrams & Parts List


Replacement Bulb Pricing

*Bulbs should be replaced
every 2 years
1 (602854) Bulb x $220.00ea
1 (602855) Bulb x $258.00ea
1 (602856) Bulb x $302.00ea

Effective in killing off bacteria and viruses such as:

  • Coliform Bacteria
  • Leptospira Interrogans (Infectious Jaundice)
  • Salmonella Typhosa (Typhoid Fever)
  • Bacteriophage (E. coli)
  • Hepatitis Virus
  • Chlorella Vulgaris
  • Influenza Virus
  • Legionella Pneumophila (Legionnaires' Disease)

UV Disinfection is suitable for Industrial & Commercial

  • Agriculture, Dairy, Livestock, Irrigation Water
  • Food & Beverage Industry
  • Beer Breweries, Wineries
  • Drinking Water
  • Ice Companies
  • Well Water
  • Aquaculture
  • Restaurants, Schools, Hospitals, Hotels

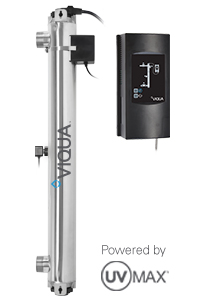

VIQUA PRO UV System Features
CoolTouch Fan
Visual Power On / Visual Lamp Life Remaining
Audible Lamp Failure / Audible Lamp Replacement Reminder
UV Sensor & Flow Meter
Chamber Material: 316L. SST
We're here when you need us! Unmatched customer and tech support with multiple channels of communication at all hours of the day and night - 365 days a year!

UV Operating Parameters: Max Water Hardness (120ppm - 7gpg), Iron (0.3ppm), Manganese (0.05ppm), Max Temperature (104 F), Min Temperature (32 F), Min/Max Pressure (10/100psi), Vertical Installation Only. Plumb 2 or more UV system in parallel for higher flow rate applications! - The optional COMMcenter displays dose in real-time and can monitor up to 9 UV systems - that's up to 270 gpm!

OPTIONAL: COMMcenter – A must have if your water is frequently monitored and tested! Demonstrates to regulators how system has been functioning over an extended period of time. Displays UV dose, alarm history, lamp hours and other performance parameters. With the introduction of the new flow meter on VIQUA PRO series systems, the COMMcenter now gives accurate dosage readings, per minute, in real time as flows change. Minute-by-minute data is logged permanently to the miniSD card, allowing easy reference through history for regulatory or troubleshooting purposes.



Add-on Price

COMMcenter: $680.00





Commercial/Industrial 45-80gpm Ultraviolet UV Systems
Our Model H+ & K+ systems are ideally suited for light commercial applications such as daycares, hospitals, dentist offices and other facilities focused on providing safe water.
Adds state of the art UV sensor technology
Continuous feedback of UV disinfection performance for added peace of mind at recommended flow rates up to 80 gpm
UV water purification, hotel/motel, apartment and condominium buildings, beverage, food processing, schools, restaurants, cafeterias, farms - dairy, cattle, chicken, swine, horse, and more.
Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli, and viruses not visible to the naked eye.
Go With More Flow - Flow rates reach up to 80gpm with a single system - plumb 2 or more in parallel for higher flow rate applications!
VIQUA UV Professional Series
Disinfection Systems
VIQUA Model # 650652 H+ PLUS 660002-R K+ PLUS
Flow Rate @
30 mJ/cm2 Dose
*45gpm **80gpm
UV Chamber
Dimensions
31"L x 4"D 41"L x 4"D
Voltage 120/240v - 50-60hz 120/240v - 50-60hz
Power
Consumption
160 Watts 230 Watts
Inlet/Outlet
Port Size
1.25" x 1" FNPT 2" MNPT


Commercial UV Pricing

*Free Shipping Within
The Continental US

650652 H+ PLUS: $2,397.00

660002-R K+ PLUS: $5,410.00


Replacement Bulb Pricing

*Bulbs should be replaced
every 2 years
1 (602855) Bulb x $258.00ea
1 (602856) Bulb x $302.00ea

VIQUA Commercial H+ / K+ UV System Features
CoolTouch Fan
Visual Power On
Audible Lamp Failure / Audible Lamp Replacement Reminder
UV Sensor - Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli, and viruses not visible to the naked eye.
Chamber Material: 316L. SST
We're here when you need us! Unmatched customer and tech support with multiple channels of communication at all hours of the day and night - 365 days a year!

UV Operating Parameters: Max Water Hardness (120ppm - 7gpg), Iron (0.3ppm), Manganese (0.05ppm), Max Temperature (104 F), Min Temperature (32 F), Max Pressure (125psi), Vertical Installation Only. Plumb 2 or more UV system in parallel for higher flow rate applications!

*Flow rate shown is based on 85% UV transmittance (UVT) and end of lamp life.
**Flow rate shown is based on 95% UV transmittance (UVT) and end of lamp life.

Viqua High Flow Commercial / Industrial UV Series
45gpm to 170gpm Ultraviolet Disinfection Systems

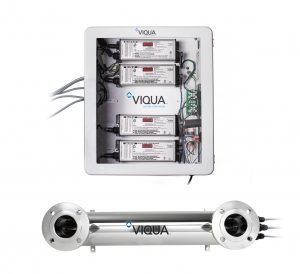

VIQUA SHFM-140 170gpm High Flow UV Disinfection System
High Flow UV Filter
SHFM-140 VIQUA UV
Retail Price: $8,595.00
Special Price: $7,975.00




Model # SHFM-140 170gpm VIQUA UV System
Operating Conditions Flow Rate: 170gpm @ 30mJ/cm2 Dose
Ambient Temperature: 36F-104F
Pressure Range: 5-125 psi
Dimensions Inlet/Outlet: 3" Flange
Chamber: 36" x 6" x 14"
Controller: 17.5" 19.5" 8.2"
Shipping Weight: 96 Pounds
Electrical Voltage: 100-240v
Frequency: 50-60hz
Power Consumption: 350w
General Polished 316 L Stainless Reactor Chamber
(4) Sterilume-HO High Performance Lamps
Visual Lamp-On & Audible Lamp Failure Indicators
Warranty  10yr for Chamber
1yr for UV Lamps & Sensors
3yr on Electrical/Hardware Components
Parameters 99.99% destruction of bacteria, viruses, and protozoan cysts
Total iron is less than 0.3ppm
Hydrogen Sulfide is less than 0.05ppm
Suspended Solids is less than 1 NTU
Manganese is less than 0.05ppm
Water Hardness below 7 gpg

SHFM-140 170GPM High Flow UV System Features

Ease of Maintenance: The control panel allows for quick accessibility to the controllers with visibility to the components and power isolation.
Reliable: High-performance UV lamps, rigorously tested to provide consistent output over the entire lamp life (9000 hours).
State of the art UV sensor technology to give you real-time performance feedback, for added peace of mind.
Convenient: Features countdown timer with digital display and audible lamp change reminder for ease of maintenance.
Durable: The high-quality 316L SS chamber provides long-term reliability.
Application: Perfect for a wide range of commercial applications including small businesses, hospitals, dentist offices, etc..
Includes: UV Sensor, End-of-Life-Timer counts down days until lamp replacement, control panel (enclosure).
