What does the Electronic RO Control Panel do and why is it important?
A: The Electronic Control Panel provides hands-free and worry-free operation of several functions of the whole house RO system. The basic RO functions include the "feed pressure switch" and "tank float switch" which regulates the system operating. The "feed pressure switch" ensures that your incoming water pressure is high enough for the RO system to operate (typically above 25psi). The "tank float switch" tells the RO system to shut down or start up based on your storage tank's water level. These basic functions are built into the RO control panel for smarter regulation and eliminates external switches.
A bonus feature included in our Electronic RO Control Panel is automatic membrane flushing. Most whole house/light commercial RO systems on the market today do not provide a membrane flush, which helps extend the life of the membrane by removing the concentrate brine (extremely salty water expelled by the membrane) sitting on the surface. Our whole house and light commercial RO systems included a manual membrane flush that allowed the user to flush the membrane as they wanted to. With this Electronic RO Control Panel, our customers no longer need to worry about remembering to flush the membrane constantly; this control panel automatically activates a membrane flush both at start up and shut down, ensuring longevity of your RO membrane.
The most important feature on this control panel, however, is the low pressure shutdown. Both public city water users and private well water users can suffer from periods of low pressure which can have a great negative affect on any RO system. If you experience a period of low pressure, a standard RO system would cycle on and off until the pressure is regulated. This can cause wear and irreversible damage to the RO pump motor and external feed pressure switch, resulting in costly and labor-intensive repair. Our RO control panel prevents this from happening by automatically shutting down the RO system if your feed pressure remains low for an extended period of time.
An optional feature on our RO control panel is pretreatment lockout. When pretreatment is needed to protect the RO system, a backwashing filter or water softener is used. When these pretreatment systems shut down to clean themselves, they allow unfiltered water to pass by the system and get into the RO if it's running at this time. To prevent possible exposure to unfiltered water a pretreatment lockout switch can be used to shut down the RO system when the water softener or filter is regenerating. Once the pretreatment system is finished regenerating, the switch will reactivate the RO system again. Both the RO system and the pretreatment system will need to be specially fitted with pretreatment lockout. This option is included free of charge when you add any of our pretreatment water softeners, iron filters, or backwashing systems to your whole house RO system!
Each function of the control panel is displayed with varying indicator lights to let you know how the system is running. You won't have to wait until it's too late and there is no water when you turn on a tap. Our Electronic RO Control Panel prevents potential RO malfunctions from happening and allows you to catch the culprit in time, before it has a chance to harm your system. This fully automated control is a must-have for any home owner that wants a hassle-free solution to many water problems.
Need Help? We Offer The Best Customer Support Team In The Industry:
![]() ![]() IN STOCK: YES - FREE DELIVERY: YES TSM-800E State Of The Art Whole House RO Package Featuring User Friendly Automated Electronic Control Panel Holiday Sales Event Apply Discount Code RAIN500 At Check-Out And Save $500.00 RainDance TSM-800E Special Package Price: $6,583.00 (Price Increase Coming January 1, 2020) ![]() ![]() ![]() Have a Question Or Need Help With Your Purchase? Talk To A Certified RainDance Water Systems Specialist Call 1-877-788-8387 Or Click On Our Live Chat Button ![]() Each RainDance Whole House Reverse Osmosis Water Purification Package Is Built Based On Your Individual Water Chemistry - Email Your Water Report To: Support@RainDanceWaterSystems.com Attn: WH-RO Recommendation - Our Engineers Can Provide An Estimated Post Water Quality Report As Well As Waste Water Ratio Information |

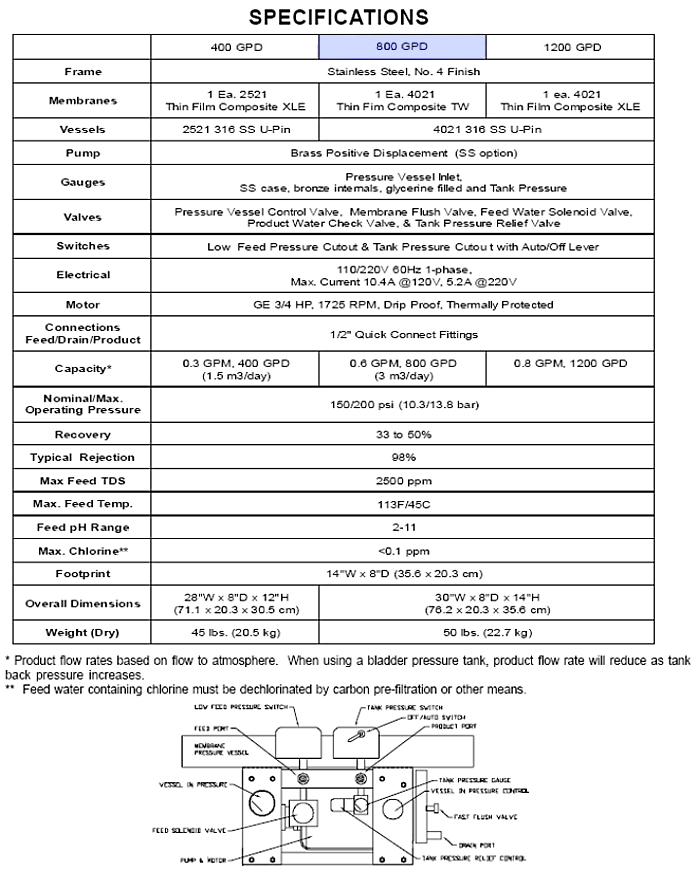

Model # | RainDance-800 Whole House RO Package |
System Function | Whole House Water Purification System & Pretreatment Package | |
Includes
800gpd Capacity Stainless Steel Reverse Osmosis |
800 Gallons Per Day | |
High Recovery/Low Waste | Up To 50% (1:1 Ratio) Low Waste Compared To RO's That Have A 5-1 Waste Ratio |
|
Power | 110V 60Hz | |
Maximum Removal Capacities | 2,500ppm
TDS < 0.3ppm Iron < 0.05ppm Manganese < 5gpg (85ppm) Hardness *If you are over these parameters contact us for pretreatment options! |
|
Applications | Engineered for City-Treated Water, Well Water, River Water, Brackish Water Sources | |
Includes Pretreatment | Attached Sediment & Carbon Filters
- These prefilters protect to RO purifying membrane by
removing sediment, debris, chlorine, pesticides,
Insecticides, herbicides, THMs and organic chemicals |
|
Includes Post
Water Remineralizer / Copper Plumbing Protection |
Separate Remineralizer Filter/ pH
Correction (Corrosion Prevention) Protects Copper Plumbing |
|
Includes 300
Gallon RO Water Storage Tank |
300 GALLON STORAGE TANK Tanks Are FDA/USDA Approved & BPA FREE! · Approx. 35" dia. x 85" ht (Designed to fit through standard doorways) · Includes 1/2" Easy Quick Connect Inlet Fitting for RO system. · Includes complete float for tank and float switch on RO for full tank shut off. |
|
Includes Storage Tank Delivery Pump |
Fully integrated compact booster pump draws water from
RO storage tank and delivers perfect water pressure to all taps. 1" Inlet/Outlet Ports. Power is 110v, 1-phase. 1 HP Motor. Output is 10 gpm at 48psi. all-in-one delivery pump, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required. Compact design and quiet operation |
|
Includes RainDance Exclusive Whole House RO Accessories |
Color-Coded Tubing RO Water Gallons Used Totalizer Monitor TDS Water Quality Monitor *3Year Supply Of Prefilters Pre-loaded Flash Drive w/ Instructions, Diagrams, Manuals Access To Unmatched 24/7 Support |
|
Customer & Tech Support | Via Phone: 9am-5pm PST Mon-Fri Via Live Chat: 5am-10pm PST 365 Days A Year Via Email: 24/7 365 Days a Year |
