Iron Max Plus Inline-10 Specialty Iron Bacteria Treatment System




Retail Price: $3,395.00

Special Price: $2,995.00 - Limited Time Special Price


Providing Well Water Iron Bacteria Removal Since 1998!


- Our Easiest Iron Max Plus Package To Install - No Electrical Hard Wiring Needed! Accommodates Constant & Varying Pressure Well Systems
- Equipment: Non-Electric Chlorine Feeder, Retention Contact Tank, Iron Max Backwashing Filter, Post Carbon De-chlorination Filter
- Shipping: Filter Tank is delivered preloaded with filter media for easy installation.
- Sizing: Suitable for 1-8 People / 1-3 Bathrooms - Up To 10gpm Flow Rate
- Removal Capacities: 15ppm High Iron, Iron & Sulfur Bacteria, 5pm Manganese, 3ppm Hydrogen Sulfide Gas, 5ppm Tannins, 3-5 Sediment Filtration, Chlorine Filtration
- Certifications: Uses NSF 61 Certified Filter Media & NSF Certified Valve, Tanks, & Chlorine Pellets
- Accessories: Includes Free Installation Kit, Preloaded Flash Drive With EZ-Instructions
- Support: When other companies close for the day, weekend and holidays, we are still open and available to answer your questions and offer tech support. Our Online Live Chat is available from 5am to 10pm PST, 365 days a year (holidays included) - Emails & Contact Forms are also answered 7 days a week 365 days a year (holidays included) or if you prefer to call (1-877-788-8387) our office hours are from 9am-5pm PST Monday-Friday.
- Testing: Includes Free Unlimited Water Testing For Optimum Performance
- Have you tested your water? Email your water analysis to support@raindancewatersystems.com and we would be happy to review your test results and recommend the best water treatment solutions to your water problem(s).
- Haven't tested your water yet? No problem! We offer FREE water testing. Click here to learn more.
- Company: For more than 20 years, RainDance Water Systems has been providing proven long term well water treatment equipment for residential homes, commercial business, farms and livestock.


             Order Online
Or Call To Order
1-877-788-8387


Iron Max Plus Inline-10
$2,995.00
Includes Free Delivery
Within The Continental US





Have a Question Or
Need Help With Your Purchase?
Talk To A Certified
RainDance Water Systems Specialist

Call 1-877-788-8387



free well water testing


Product Specifications

System Function

Well Water Iron, Iron Bacteria, Manganese, Sulfur Odor, Sediment Filtered Water Treatment System
Maximum Removal Capacities Ferrous & Ferric Iron Up To 15ppm
Manganese Up To 5ppm
Hydrogen Sulide Gas Up To 3ppm
Tannins Up To 5ppm
Sediment, Sand, Turbidity Down To 3-5 Microns
Iron Bacteria & Sulfur Bacteria
Post Carbon Filter Removes Chlorine & Chemicals

Dimensions

Chlorine Feeder: 12"L x8"W x 12"H
Contact Tank:
24" dia. x 72" ht.
Iron Max Filter: 10" dia. x 62" ht.
Post Carbon Filter: 5" dia. x 13" ht.
Equipment Includes Non-Electric Chlorine Feeder w/ Pellets & Contact Tank, Iron Max Backwashing Filter, Post Carbon Drinking Water Filter
Plumbing Size Chlorine Feeder: 3/4"
Contact Tank:
1.25"
Iron Max Filter: 1"
Post Carbon Filter: 1"

Maintenance


Chlorine Pellet Feeder should be refilled with NSF Certified chlorine pellets.
Post Carbon Filter requires periodic replacement.

Maximum Flow Rate

10 gpm

Iron Max Control Valve

Automatic Backwashing

Iron Max Backwash Flow Rate

8 gpm Bypass Valve Yes, Included

Iron Max Weight

120 lbs Protective Tank Jacket Yes, Included

Iron Max Power

110v 60hz Installation Instructions Yes, Included

Minimum/Maximum Pressure

30/80 psi
Tech Support

Yes, Included


Package Equipment Included

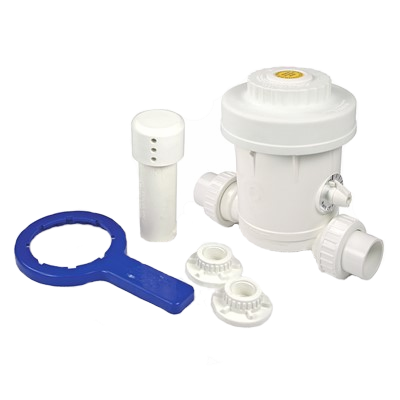

  Non-Electric Inline Chlorine Feeder - User-friendly dry chlorine pellet feeder features fully adjustable metering, corrosion-proof construction, and operates on constant or varying pressure systems. A patented chemical feed process uses dry pellets for fast and easy filling instead of messy chemicals and never needs priming. No wiring or electricity required!
Includes Feeder w/ 3/4" Adapters, Adjustable Feed Tube, 5 Bags of NSF Certified Chlorine Feed Pellets
Retention Contact Tank - Ensure optimum contact time for chlorination with this easy-to-install retention tank. Features lightweight & durable design, corrosion-proof construction, threadless rotating connections, and blowdown valve for easy removal of built-up sludge in the bottom of the tank.
Specifications: 24"D x 72"H - 120 Gallon Capacity - 1.25" Connections.
  Iron Max Backwashing Filter - Designed to filter oxidized ferrous & ferric iron, iron bacteria, manganese, hydrogen sulfide gas, and sediment after the oxidation treatment process. Easily installs on the main water line and features automatic backwashing & self-cleaning for no routine filter replacements.
Includes 1" Bypass Assembly, Protective Tank Jacket, Drain Line Tubing & Mister Drain Air Gap.
Post Carbon Filter - Post drinking water filter designed to filter any residual hydrogen peroxide or chlorine. This filter can also filter  other chemicals such as herbicides, pesticides, and insecticides. Easily installs after the Iron Max as a final polishing filter for clean, clear drinking water quality.
Includes 4.5" x 10" Filter Housing w/ 1" Plumbing Ports, Mounting Bracket & Filter Wrench.

FREE Exclusive Offer Only From RainDance Water Systems
We Are Now Including The Same Kit We Provide Our Dealers

The RainDance Iron Max Plus Inline DIY Installation/Service Kit
Be prepared like a RainDance dealer with the on-site Iron Max Plus Inline Dealer Kit - perfect for the DIYer or hand it over to your plumber and save a little more on common installation supplies. Dealer Kits include stainless steel installation flex connectors, before & after water test bibs, on the spot water test kit, chlorine test strips, and more. As always, our Preloaded RainDance USB Flash Drive contains all the installation instructions, diagrams, and manuals you or your installer needs for ease of installation and maintenance.
  Chlorine Test Strips - Monitor your chlorine injection after the Iron Max Plus system to ensure effective treatment.

No Lab Fees! We offer a FREE lifetime water testing service for as long as you own your Iron Max Plus!

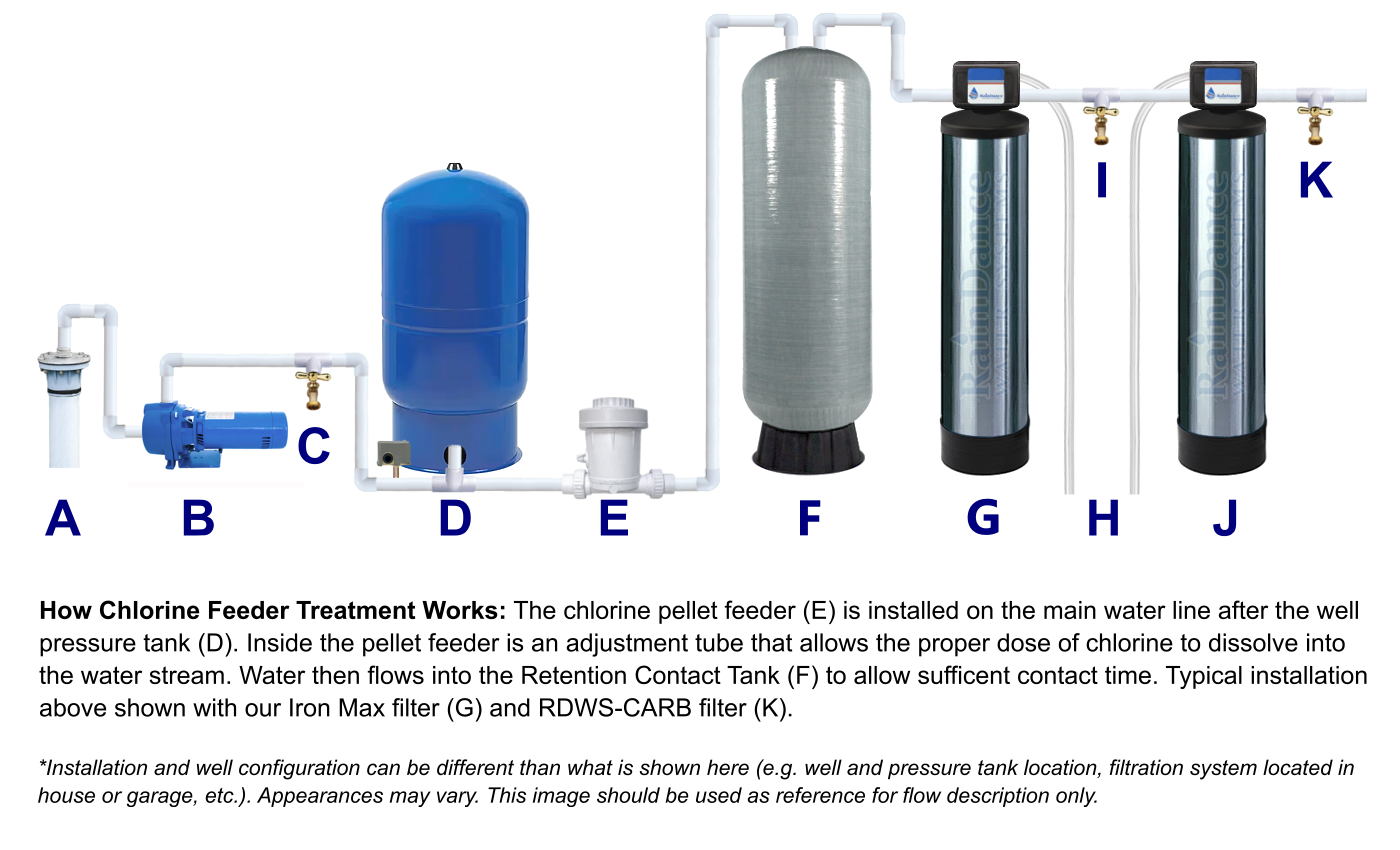

Package Plumbing Diagram



Product Maintenance

The following list is the typical routine maintenance required for the Iron Max Plus Inline-10 System.
*Maintenance and replacement is dependent on water chemistry and may be subject to more or less frequent changes.
Replacements are readily available through RainDance Water Systems.



Chlorine Pellet Feeder

Feeder should be refilled with NSF Certified chlorine pellets as needed.

Iron Max Backwashing Filter

High performance filtration media should be replaced every 8-10 years*.

Post Carbon Filter

Carbon Filter Cartridge should be replaced every 6-9 months*.


Essential Product Information
Warranty: Lifetime Warranty on Media Tank - 5 Year Warranty on Digital Valve
Free Transferable Warranty
Click Here To Read More
Assembly: Iron Max Filter ships with tank and media pre-assembled - simply attach control valve onto tank when you're ready to install!
Additional plumbing materials such as pipe and fittings needed to connect the existing plumbing are not included. These materials are readily available at any hardware or home improvement retail store.
Installation: All equipment is installed in series after the well pressure tank to provide even water pressure throughout the systems.
Detailed Plumbing Instructions, Owner's Manual, Diagrams Included on Preloaded Flash Drive


Support:

Unmatched lifetime before & after sales customer support 7 days a week, 365 days a year with knowledgeable, patient representatives!


Product Questions & Answers

Have a iron bacteria question that hasn't been answered? Live chat with a RainDance specialist for a quick answer!


Q: What is iron bacteria? Is it iron?

A:  Iron bacteria is a type of iron which is commonly seen as a slimy coating on pipes and appliances. There are several different types of iron that can be found in ground water wells including Ferrous (Clear Water Iron), Ferric (Red Water Iron), Iron Bacteria, and Colloidal Iron. Iron bacteria, as well as Sulfur Bacteria, are two of the most common bacterial contaminants that well owners face. Neither type of bacteria is particularly harmful, however they can be incredible nuisances.
Read More About Types Of Iron Here >>>

Q: How does the Iron Max Plus remove iron bacteria?

A: Iron bacteria cannot be removed without some oxidation, so the Iron Max Plus uses chlorine to completely oxidize iron bacteria. After oxidation, the Iron Max filter removes the oxidized iron bacteria and other contaminants. A Post Carbon Filter is included to remove any residual chlorine from the water after oxidation.

Q: How much will it reduce iron and iron bacteria?

A: The Iron Max Plus can effectively filter up to 15ppm of iron including iron bacteria and reduce the levels to below the EPA Secondary maximum limit (0.3ppm). In most cases they are filtered down to trace or non-detectable levels.

Q: Will it eliminate rotten egg odors?

A: Yes! This system treats two common types of rotten egg odor - hydrogen sulfide gas and sulfur bacteria. Sulfur bacteria includes sulfur oxidizers (produces a dark slime that can clog plumbing) and sulfur reducers (breaks down sulfur compounds producing hydrogen sulfide gas).

Q: Do I have to use chlorine?

A: Yes, when extremely high iron levels or iron bacteria is present additional oxidation is required for long-term filter life. To assure the utmost water quality, all Iron Max Plus systems include an important post carbon filter to remove any residual chlorine & chlorination-by-products from the water so you never realize it was added.

Q: How long does the filter last?

A: The entire system does not need to be replaced, just the Iron Max filter media. This media is designed to last up to 8-10 years depending on water chemistry and usage. When the media is spent you can simply remove the old media and load new media into your system for continued years of service.

Q: Do I need a plumber to install?

 A: If you are handy and have basic plumbing skills you should have no problem with this installation. All equipment includes simple inlet/outlet ports to install. We provide detailed installation instructions, pictures, and offer several means of tech support for you or your installer if needed.

Q: How do I know my filter is working?

A: There are (3) test bibs and a water test kit included with the Iron Max Plus. These bibs are easily installed between each system for on-site testing. We also offer lifetime testing for as long as you own the system.
