The RainDance "Iron Filter" Catalog & Selection Guide




RainDance Iron Filters can accommodate well water pump flow rates from 8gpm up to 150gpm and can be installed on 3/4" up to 2" plumbing lines.

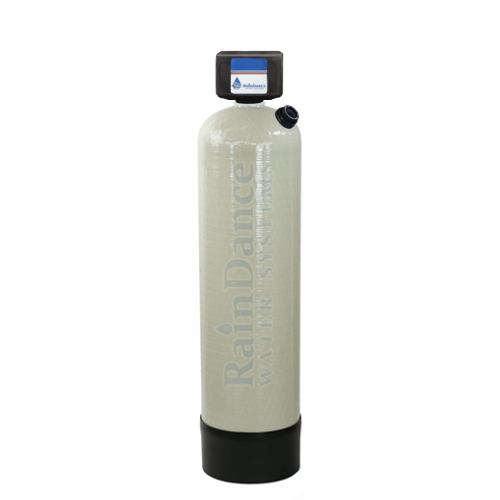

What Is The Iron Max? The Iron Max from RainDance Water Systems is an automatic backwashing iron filter engineered for whole house well water filtration, irrigation water and commercial business. The Iron Max can accommodate well water pump flow rates from 8gpm up to 100gpm and can be installed on 3/4" up to 2" plumbing lines. Why Do You Need The Iron Max? If you are experiencing unpleasant metallic tastes, rust particles, staining on the bath and sink and other plumbing fixtures, or red water and rotten egg smelling odors, the chances are that your well water may have iron, manganese or hydrogen sulfide problems. The Iron Max can filter these contaminants as well as sediment to provide crystal clear clean water to your home, business and irrigation system. Should I Have My Water Tested Before I Buy The Iron Max? Yes! Not all well water sources are universal or the same. What if your well has iron bacteria or colloidal iron? Most well water filter systems cannot handle these contaminants. Take the time to have your water tested and avoid future headaches! Contact a RainDance Agent for FREE water testing

If you already have a well water iron test please email the results to: Support@RainDanceWaterSystems.com Attn; Reccomendation - we will recommend the best iron filter available.

.

Need A Free Water Test? Contact Us
Need To Purchase An Iron Filter: Sales@RainDanceWaterSystems.com
Have A Technical Question Or Need Support: Support@RainDanceWaterSystems.com
Already A Iron Max Customer: Accounts@RainDanceWaterSystems.com
REQUEST AN IRON FILTER BROCHURE: RainDanceWater@Consultant.com


Iron Max-9
Flow Rate: 8gpm
Pipe Size: 3/4" or 1"
1-5 Person Household / 1-2 Bathrooms
Best For Approx. 1-500 GPD


         Iron Max-10
Flow Rate: 10gpm
Pipe Size: 3/4" or 1"
1-8 Person Household / 1-3 Bathrooms
​Best For Approx. 1-1000 GPD


Iron Max-125-10
Flow Rate: 12gpm
Pipe Size: 1" or 1.25"
1-8 Person Household / 1-3 Bathrooms / Irrigation
​Best For Approx. 1-1000 GPD
         Iron Max-125-12
Flow Rate: 18gpm
Pipe Size: 1" or 1.25"
1-10 Person Household / 1-4 Bathrooms / Irrigation
Best For Approx. 1-1500 GPD

Iron Max-125-14
Flow Rate: 25gpm
Pipe Size: 1.25" or 1.5"
Large Home / Commercial
​Best For Approx. 2000+ GPD
         Iron Max-125-16
Flow Rate: 30gpm
Pipe Size: 1.25" or 1.5"
Large Home / Commercial




The new Hybrid Iron Max series features the same great filtration capabilities as our signature Iron Max filters with the added bonus of pH correction to work with acidic low pH waters. The Hybrid Iron Max features a user-friendly design with an easy loading dome hole for hassle-free maintenance!

Hybrid Iron Max-13 pH Boost
In-Tank pH Correction Included!
Flow Rate: 10gpm
Pipe Size: 3/4" or 1" or 1.25"
1-8 Person Household / 1-3 Bathrooms
Best For Approx. 0-1000 GPD





The Commercial Iron Max series was created to accommodate high flow and high demand water users who require high performance well water treatment equipment. Plumb two or more Commercial Iron Max systems in parallel to accommodate higher flow rates!

Model # Tank Size Pipe Size Weight Service
Flow Rate
Backwash
Flow Rate
Iron Max-18 18" Diameter
65" Height
1.5" 870lbs 36gpm 25gpm
Iron Max-21 21" Diameter
62" Height
1.5" 1040lbs 42gpm 30gpm
Iron Max-24 24" Diameter
72" Height
2" 1525lbs 60gpm 45gpm
Iron Max-30 30" Diameter
72" Height
2" 2375lbs 90gpm 60gpm
Iron Max-36 36" Diameter
72" Height
2" 3100lbs 120gpm 90gpm

The Twin Alternating Iron Max systems are designed to provide a continuous, unlimited supply of filtered water with dual alternating filter tanks that stagger backwashing cycles so one tank is always ready to filter water no matter when you need it!
Twin Iron Max-10
Flow Rate: 10gpm
Pipe Size: 3/4" or 1"
1-8 Person Household / 1-3 Bathrooms / Light Commercial
         Twin Iron Max-12
Flow Rate: 18gpm
Pipe Size: 1"
1-10 Person Household / 1-4 Bathrooms / Light Commercial
Twin Iron Max-14
Flow Rate: 25gpm
Pipe Size: 1.5"
High Water Use Homes / Commercial

         Twin Iron Max-16
Flow Rate: 30gpm
Pipe Size: 1.5"
High Water Use Homes / Commercial




The Non-Electric Iron Max system filters high iron, manganese, hydrogen sulfide gas odors, and sediment without electricity or power! This system includes a user-friendly non-electric control valve for manual backwashing when needed. Perfect for vacation home, cabins, and off-the-grid users!


Non-Electric Iron Max-10NE
No Power Required!
Flow Rate: 10gpm
Pipe Size: 3/4" or 1"
1-5 Person Household / 1-2 Bathrooms
Best For Approx. 0-500 GPD




The Iron Max-FX series uses the same high performance filtration as our Iron Max treating up to 30ppm ferrous & ferric iron, up to 5ppm manganese, up to 3ppm hydrogen sulfide gas odors, sediment down to 3-5 microns, and can also reduce the effects of hard water scale with the built-in salt-free hard water module!


Iron Max-FX-10
Flow Rate: 10gpm
Pipe Size: 3/4" or 1"
1-5 Person Household / 1-2 Bathrooms / Light Commercial
​Best For Approx. 0-500 GPD

         Iron Max-FX-125-12
Flow Rate: 18gpm
Pipe Size: 1" or 1.25"
1-5 Person Household / 1-2 Bathrooms / Light Commercial
​Best For Approx. 0-1500 GPD
Twin Iron Max-FX-10
Flow Rate: 10gpm
Pipe Size: 3/4" or 1"
1-5 Person Household / 1-2 Bathrooms / Light Commercial
​Best For Approx. 0-3000 GPD
